Quick Answer

Motors are more likely to need a shaft grounding ring when they are powered by VFD drives, operate at high speeds, use long motor cables, or run continuously in industrial environments. These conditions increase the likelihood of shaft voltage and bearing current.

The Increasing Risk in Modern Drive Systems

As Variable Frequency Drives become more common, electrical bearing damage is appearing more frequently in industrial motor systems.
However, not every motor requires grounding protection.
Certain operating conditions significantly increase the risk of shaft voltage and stray current.

• VFD-Driven Motors

Motors powered by VFD systems experience high-frequency switching voltages. These switching signals generate common-mode voltage, which can induce electrical potential on the motor shaft.
For this reason, VFD-driven motors are the most common candidates for shaft grounding solutions.

• Large Industrial Motors

Larger motors often have higher internal capacitance between components. This electrical coupling makes it easier for voltage to accumulate on the shaft. As motor size increases, the risk of electrical discharge through the bearings also rises.

• High-Speed Equipment

High rotational speeds can make electrical bearing damage more severe. When discharge events occur at high speeds, the repeated electrical sparks can damage the bearing surface much faster. Applications such as compressors, blowers, and high-speed pumps frequently experience this issue.

• Long Motor Cable Installations

When the distance between the VFD and the motor is long, cable impedance and reflected wave voltage can increase electrical stress in the system. This can contribute to higher shaft voltage levels. Grounding protection is often recommended in these installations.

Continuous Duty Applications

Motors that operate for long periods accumulate more electrical discharge events. Even small currents can cause significant damage when repeated over thousands of operating hours.

A Preventive Engineering Strategy

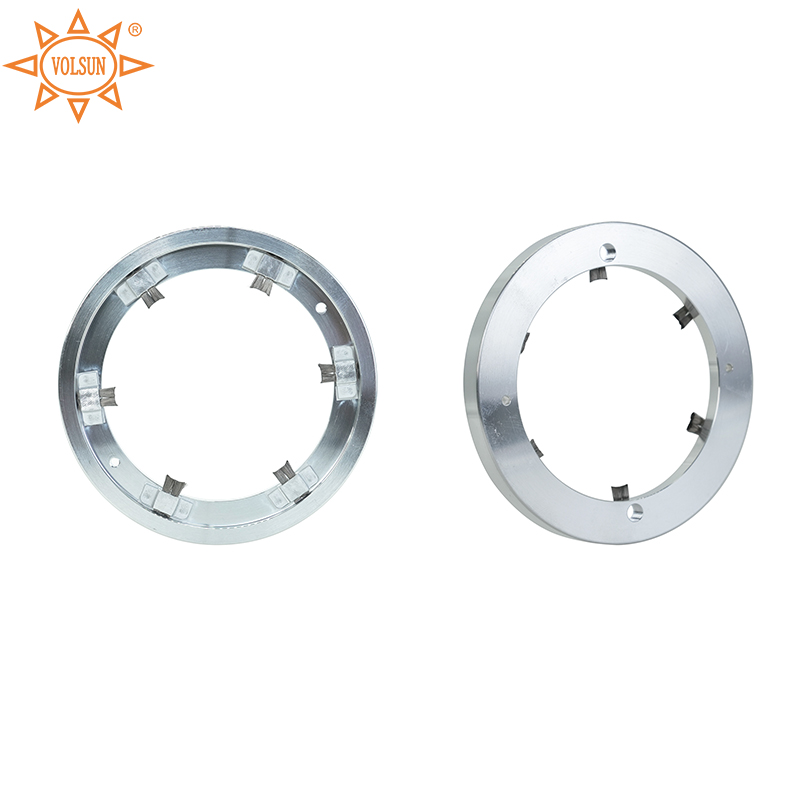

Understanding when grounding protection is needed allows engineers to prevent problems before they occur. For high-risk applications, installing a shaft grounding ring is a simple preventive step that can significantly improve motor reliability.

FAQ

1. Do all VFD motors require grounding rings?

Not always, but many industrial VFD systems benefit from grounding protection.

2. Are grounding rings expensive to install?

They are generally a low-cost preventive component compared to motor repair or downtime.

3. Can grounding rings extend bearing life?

Yes, by preventing electrical discharge damage.
