In every photovoltaic (PV) system, reliable electrical connections are essential for long-term performance. While MC4 connectors are designed to provide secure cable connections, the exposed cable entry area still needs effective environmental protection. Rain, dust, UV radiation, and continuous temperature changes can all affect the reliability of outdoor cable connections over time.
For this reason, more EPC contractors, solar installers, and connector manufacturers are replacing traditional heat shrink tubing with silicone cold shrink tubes. The technology not only simplifies installation but also provides dependable sealing for outdoor solar applications.
Why MC4 Connector Sealing Matters
Solar power systems are expected to operate outdoors for decades with minimal maintenance. Throughout their service life, cable connections may experience:
- Strong ultraviolet radiation
- High daytime temperatures and cooler nights
- Moisture from rain and humidity
- Dust and sand in open environments
- Continuous thermal expansion and contraction
Choosing a suitable sealing solution is therefore an important part of designing a durable photovoltaic system.
Why Silicone Cold Shrink Technology Offers an Advantage

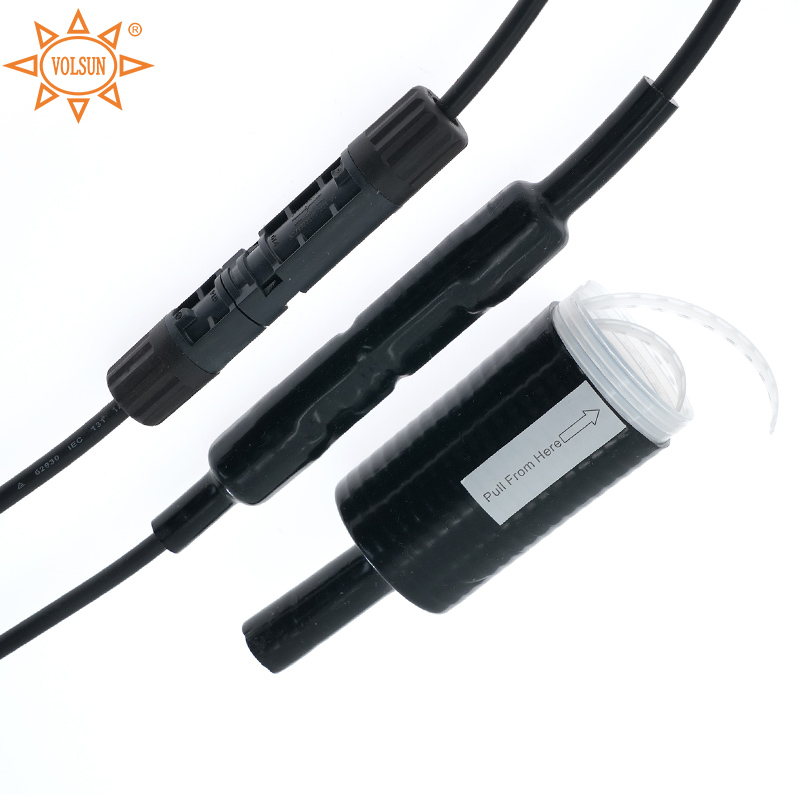

Unlike heat shrink products, silicone cold shrink tubes are pre-expanded on a removable support core. Installation is straightforward: position the tube over the connector and pull out the plastic core. The silicone material immediately shrinks to create a secure seal around the cable without any heating or adhesive. This simple installation process helps improve consistency while reducing dependence on specialized tools.
In addition to easier installation, silicone material provides excellent environmental resistance for long-term outdoor use.
Key features include:
- Continuous operating temperature from -55°C to 180°C
- Approximately 6:1 expansion ratio to accommodate different cable diameters
- Excellent resistance to UV radiation and ozone aging
- Good resistance to salt mist corrosion
- Reliable sealing against moisture, dust, and water
- Flexible material that maintains sealing pressure over time
A Practical Example from a Solar Project
One of Volsun's customers in Israel selected the VS-25×175 mm black silicone cold shrink tube for sealing MC4 connectors in an outdoor photovoltaic project. The model is designed for cable outer diameters ranging from 6 mm to 20 mm, making it suitable for many common PV cable configurations. The customer wanted a sealing solution that could withstand outdoor exposure while simplifying field installation. By using silicone cold shrink technology, the installation team was able to complete connector protection without heating equipment, supporting efficient project deployment and reliable environmental sealing.
Choosing the Right Solution for Long-Term Reliability
When selecting a sealing solution for MC4 connectors, installers should consider more than just the initial installation cost. Long-term weather resistance, installation efficiency, maintenance requirements, and material durability all contribute to the overall reliability of a photovoltaic system.
Silicone cold shrink tubes provide a practical balance of these factors, making them a dependable choice for utility-scale solar farms, commercial rooftop systems, and residential PV installations alike. As the solar industry continues to focus on system reliability and installation efficiency, cold shrink technology is expected to play an increasingly important role in protecting outdoor electrical connections.
Contact Volsun to discuss the right cold shrink tube for your application.
