SBRS-110G(3X)(4X)NF
Environmentally Friendly Non-Flame Retardant Adhesive-lined Dual Wall Heat Shrink Tubing

【Description】
    SBRS-110G(3X)(4X)NF is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive,with superior sealing capability,is also a buffer against mechanical strain.Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas and chemicals. Typical applications include environmental sealing of in-line splices, sealing and strain relief of connectors and terminals,abrasion protection and electrical insulation of automotive wiring harness splices and valuable components,fleet & marine sealing & protection and wire bundling etc.

【Features】

• Shrink ratio： 3:1、 4:1
• Flexible ,environment friendly
• Shrink temperature： 70°C～100°C
• Continuous operating temperature： -45°C～110°C（-45°C～105°C for clear）
• RoHS compliant
• Standard colors: Black, White, Red , Yellow ,Green, Blue ,Clear. More colors are available upon request.

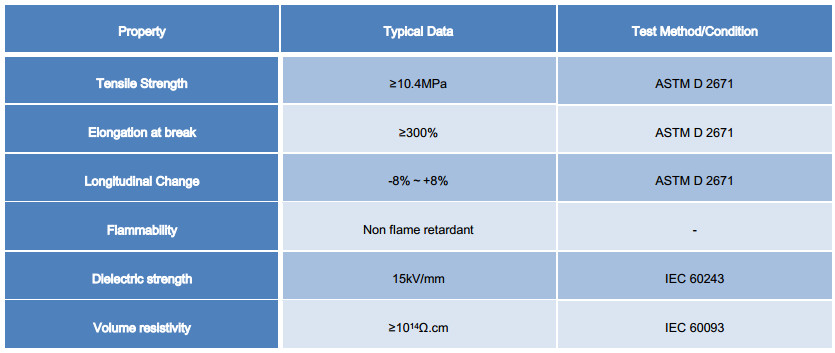

【Technical Performance】

【Structure】



【Dimensions】

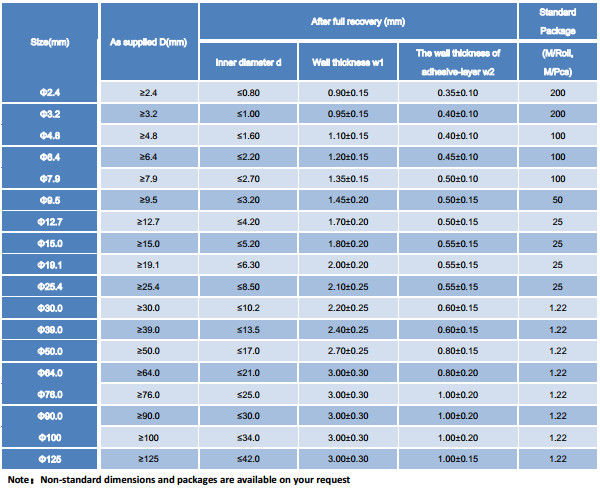

Shrink ratio:3:1

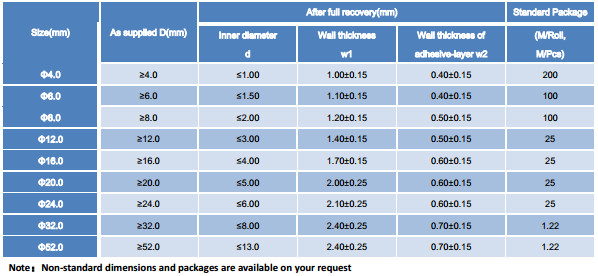

Shrink Ratio:4:1
