SBRS-125G(3X)HB
Heavy Wall Adhesive-lined Dual wall Tubing

【Description】
    SBRS-125G (3X)HB is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive, with superior sealing capability,is also a buffer against mechanical strain.Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas and chemicals.

【Features】

• Standard :UL 224
• Shrink ratio:3:1
• Heavy wall, flame retardant outer layer ,environmentally friendly, UV resistant
• Shrink temperature:80°C ~120°C
• Continuous operating temperature:-45°C ~125°C
• RoHS compliant
• Standard color: Black

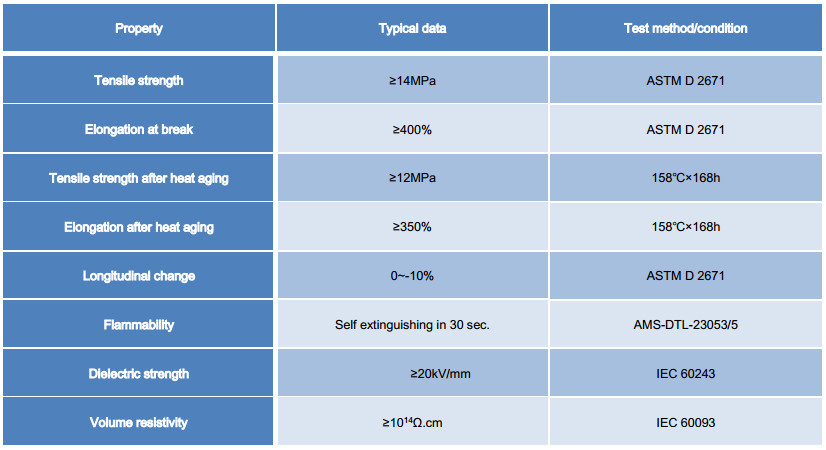

【Technical Performance】

【Structure】

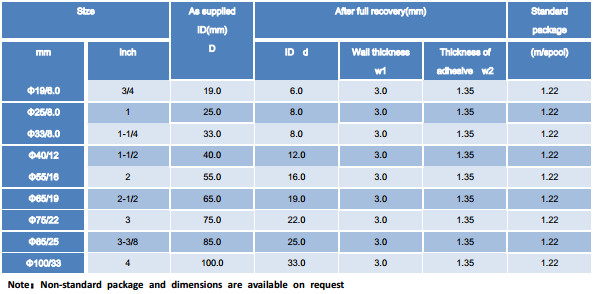

【Dimensions】
