HBDJ-125G(3.5X)
Flame Retardant Heavy Wall Adhesive Lined Heat Shrink Tubing




Description
Flame Retardant Heavy Wall Adhesive Lined Heat Shrink Tubing is a polyolefin tube extruded with a layer of hot melt adhesive as the inner layer. It has excellent insulation, mechanical abrasion resistance, impact resistance performance and good sealing performance against water and moisture. This product is found in many applications esp. flame retardant demanding conditions like insulation and protection for high voltage cable middle connections, terminations and busbar as well as different kinds of pipelines for its excellent corrosion resistance, abrasion resistance.








Features

  • Min shrink temperature: 80°C
  • Min. full recovery temperature: 120°C
  • Continuous operating temperature: -55°C ~125°C
  • Shrink ratio: 3.5:1
  • RoHS compliant
  • Flame retardant outer layer, environment friendly
  • Standard color: black, more colors are available upon request

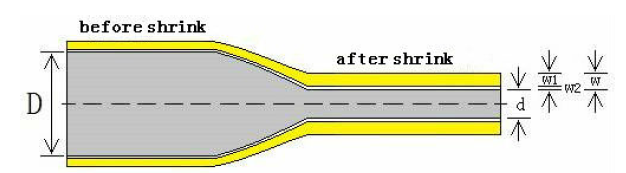

Structure

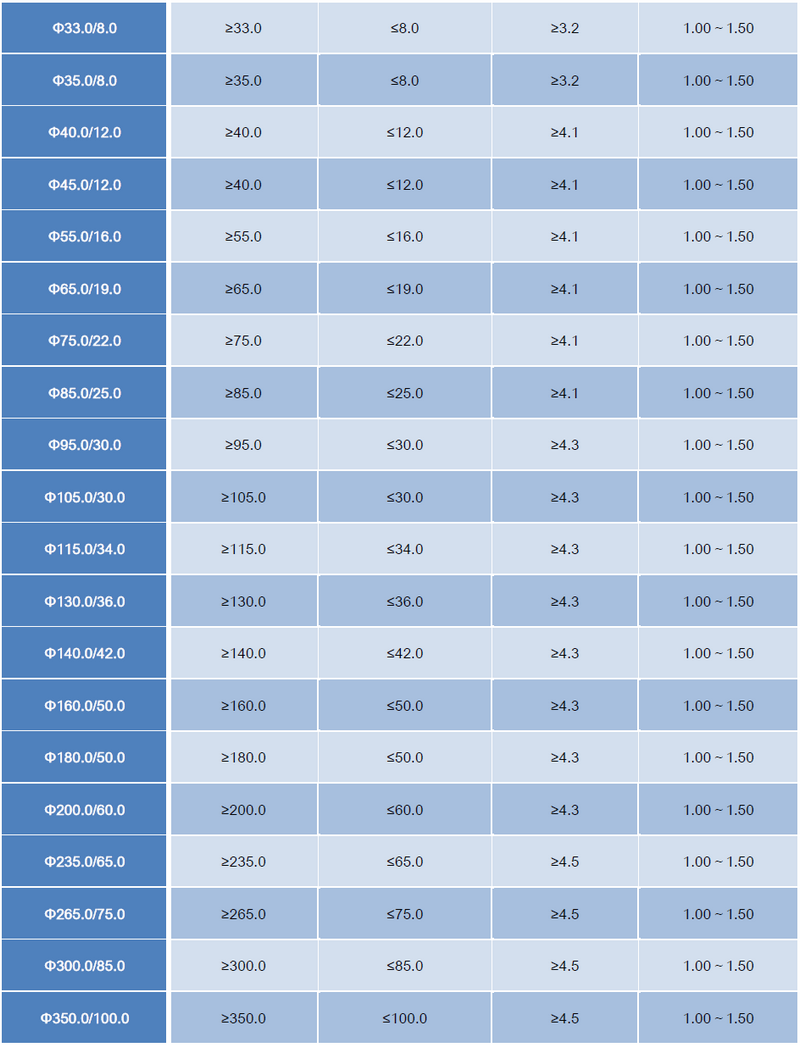

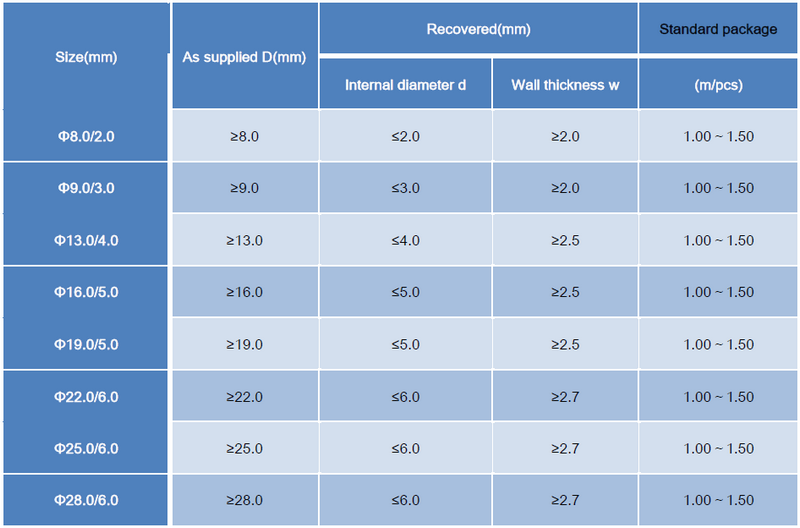

Dimensions


    Note: Non-standard dimensions and package are available on request

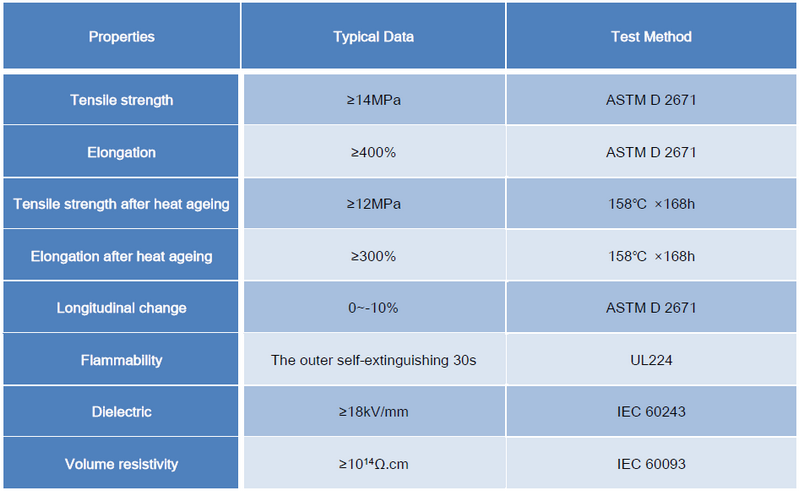

Technical Performance

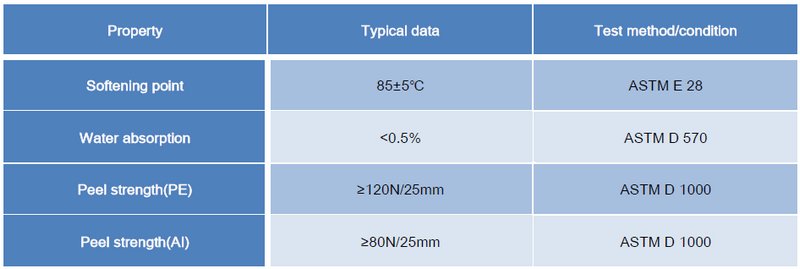

Hot Melt Adhesive
