ZBDJ-125G(3.5X)
Flame Retardant Medium Wall Adhesive-lined Heat Shrink Tubing

【Description】
   ZBDJ-125G (3.5X)Flame retardant adhesive-lined heat shrink tubing, with a hot melt adhesive layer extruded inside, is made of polyolefin materials whose properties are modified through ionizing radiation technology. The polyolefin outside, combined with inner layer of adhesive, produces excellent insulation, sealing
capability against water and moisture, mechanical abrasion resistance, impact resistance. This product is specially designed to provide insulation protection for medium and low voltage cable middle connection, terminations and various busbars and for other corrosion resistant, moisture-proof and sealing purposes.

【Features】

• Shrink ratio:3.5:1
• Flame-retardant outer layer; environmentally friendly
• Shrink temperature:80°C ~120°C
• Continuous operating temperature:-55°C ~125°C
• RoHS compliant
• Standard colors: black



【Technical Performance】

【Structure】

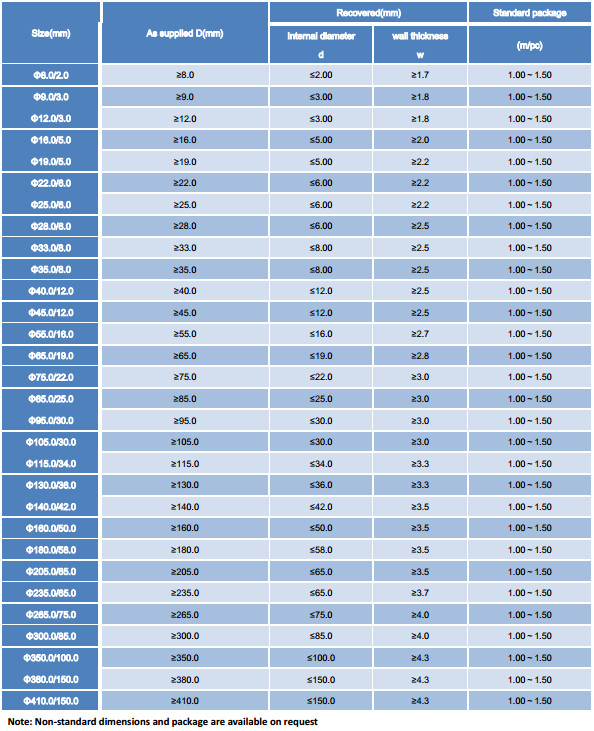

【Dimensions】
