TZRS-PVDF175(2X)
PVDF-Kynar Heat Shrinkable Tubing



【Description】
TZRS-PVDF-(2X) Kynar Heat shrinkable Tubing is normally designated as kynar tubing, is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high-temperature resistance. Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cut-through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents. When heated in excess of 347°F (175°C), TZRS-PVDF-(2X)-B tubing rapidly shrinks to a skintight fit.

【Features】

• Approval: UL, VW-1, File No.E249362
• Meet: RoHS, SAE-AMS-DTL-23053/18
• Operating temperature: -55°C to + 175°C
• Minimum fully recovery temperature: 175°C

【Structure】

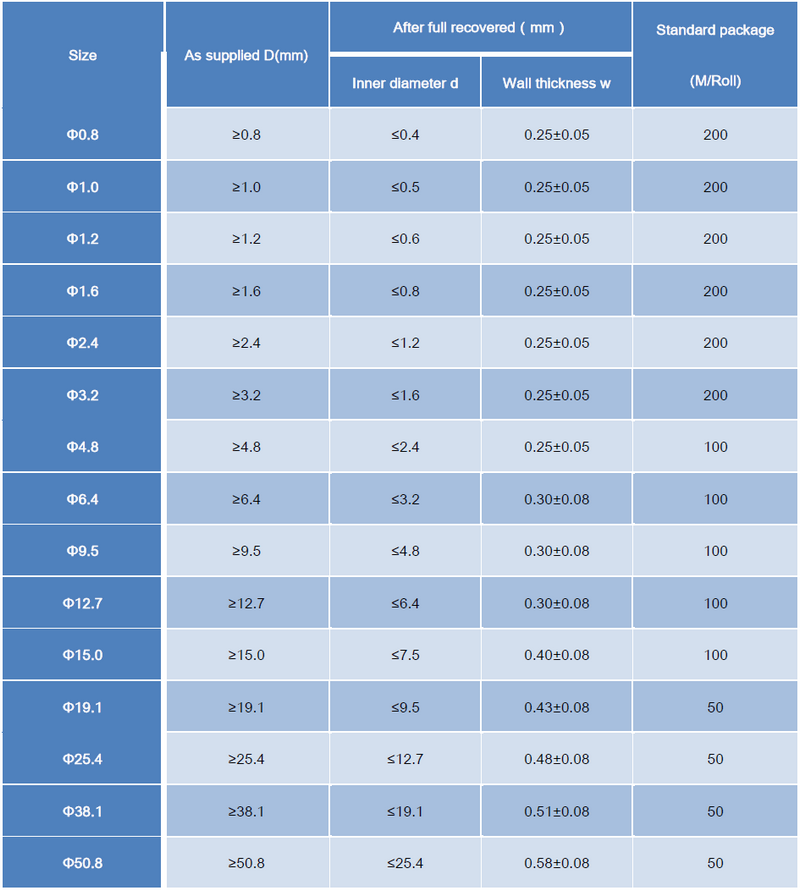

【Dimensions】



    Note: Non-standard dimensions and package are available on request

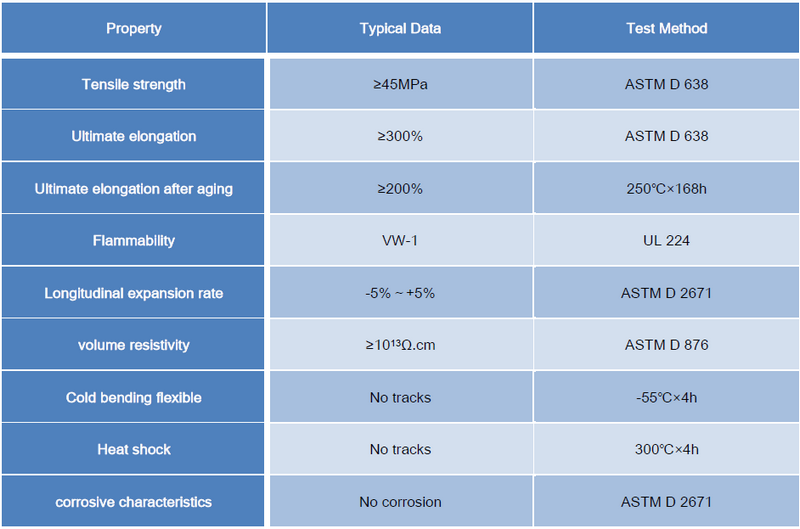

【Technical Performance】
