TZRS-VT200 (2X)
Fluoroelastomer (Viton) Heat Shrink Tubing



【Description】
TZRS-VT200(2X) modified fluoroelastomer heat-shrinkable tubing is highly abrasion and cut-through resistant and can withstand a wide variety of fuels, lubricants, acids and highly corrosive fluids at temperatures up to 200°C. In addition to its high continuous operating temperature and chemical-resistance properties, this tubing is very flexible and is easily marked by hot-stamp or printwheel methods. When heated in excess of 175°C (347°F), TZRS-VT200(2X) tubing rapidly shrinks to a skintight fit. TZRS-VT200(2X) tubing is rated for continuous operation from –55°C (–67°F) to 200°C (392°F).135°C/275°F.

【Features】

• Cross-linked fluoroelastomer
• Superior abrasion resistance
• High temperature resistance
• Excellent resistance to aggressive chemicals and solvents
• Available with various wall thickness
• Continuous operating temperature:-55°C ~200°C
• Min. Full recovery temp.: 175 °C
• RoHS compliant
• Flammability: UL 224 VW-1
• Meets: SAE-AMS-DTL-23053/13

【Structure】

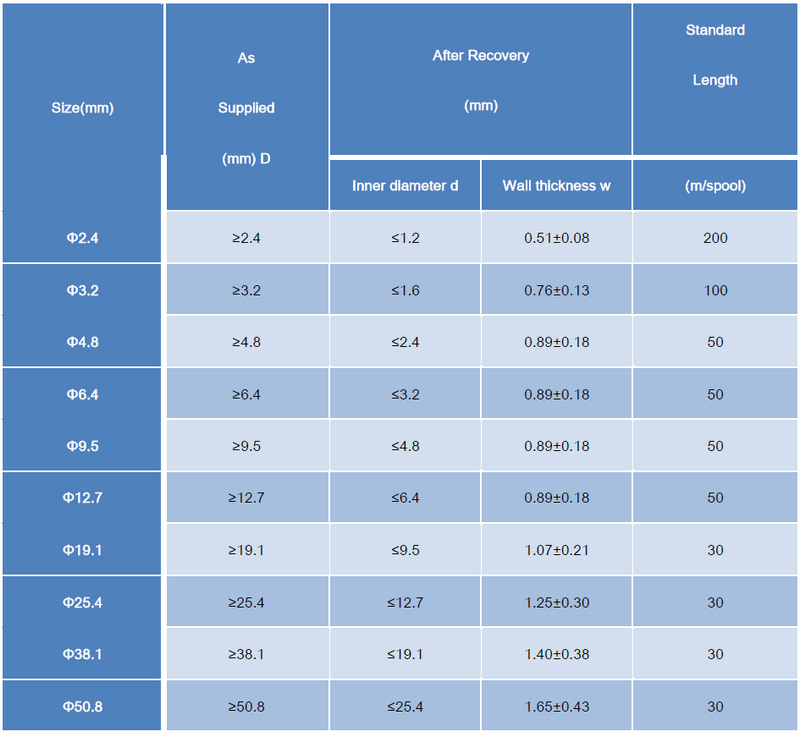

【Dimensions】



    Note: Non-standard dimensions and package are available on request

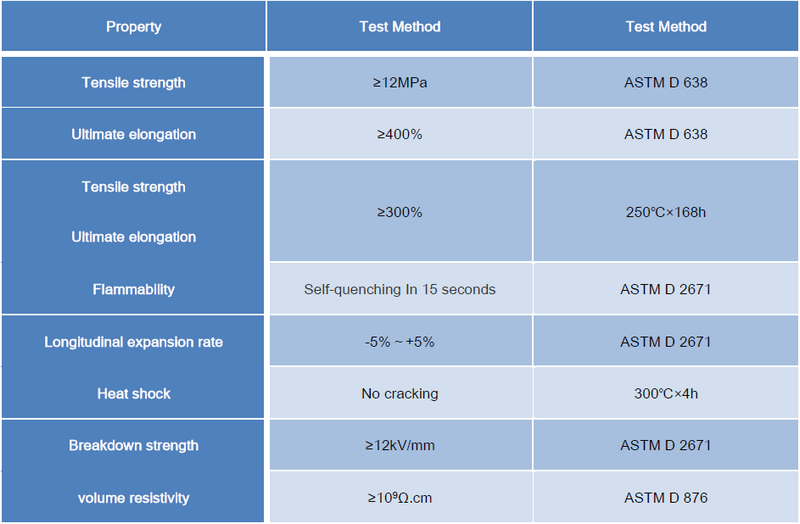

【Technical Performance】
