DBRS-125H(2X)(3X)
Halogen-free Flame Retardant Heat Shrinkable Tubing


Halogen-free Flame Retardant Heat Shrinkable Tubing
Description
    Halogen-free fire retardant heat shrinkable tubing,made of radiation cross-linked polyolefin, is designed with excellent physicochemical and electrical properties. Typical applications include insulation of electrical connections or wire splices, rust and
corrosion resistance for the soldered joints or connections, mechanical and wiring harness protection and insulation in electronics, communications,automotive, marine, aircraft manufacturing and other fields.


Features

  • Meets UL 224, CAN / CSA C22.2 NO198.1 -99
  • Heat shrink ratio : 2:1,3:1
  • Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
  • Min. shrink temperature : 84 °C
  • Min. full recovery temperature :120 °C
  • Continuous operating temperature : -55 °C ~ 125°C
  • Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
  • Standard colors: Black, White, Red , Yellow ,Green, Blue ,Clear. More colors are available upon request.

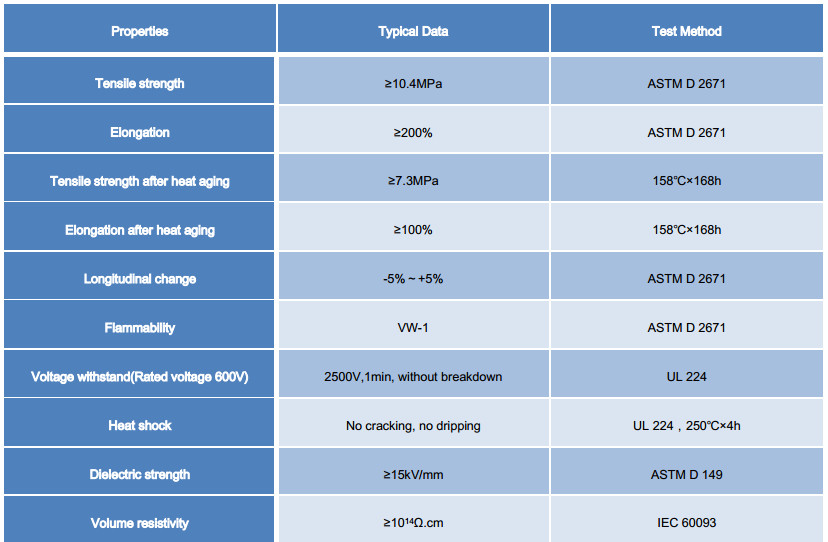

Technical Performance

Halogen-free Flame Retardant Heat Shrinkable Tubing

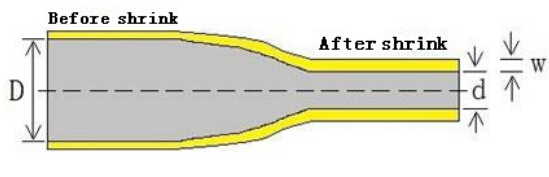

Structure

 Halogen-free Flame Retardant Heat Shrinkable Tubing

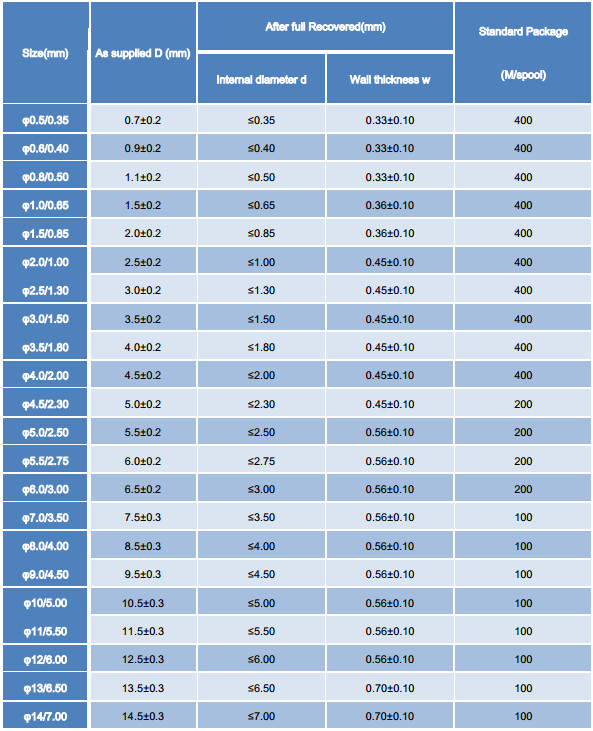

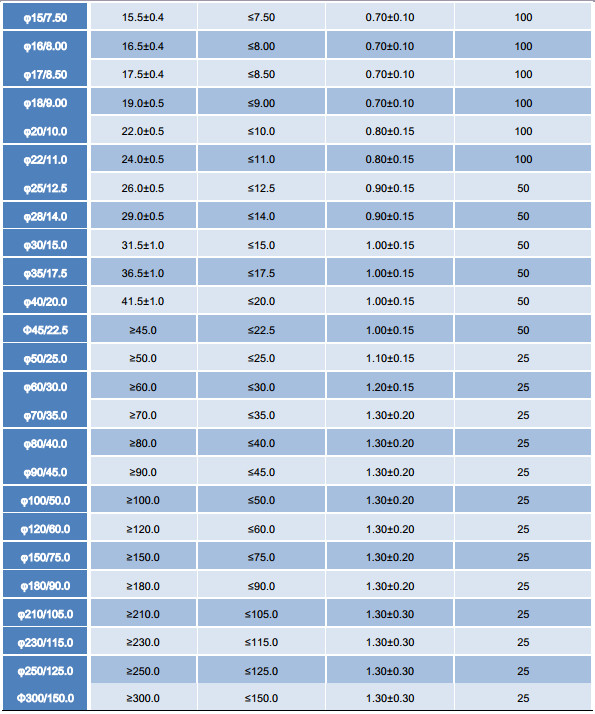

Dimensions

Halogen-free Flame Retardant Heat Shrinkable Tubing
Halogen-free Flame Retardant Heat Shrinkable Tubing
