DBRS-125H(2X)CB
Halogen-free Ultra-thin Flame Retardant Heat-shrink Tubing


【Description】
    Halogen-free ultra-thin flame retardant heat-shrink tubing, made of radiation cross-linked polyolefin, carries excellent physicochemical and electrical properties. Typical applications include insulation of electrical connections, rust and corrosion resistance for soldered connections or joints, mechanical and wiring harness protection. This product is widely used in the automotive, agricultural and household Pipe Benders protection, electronics, life consumables, decoration and lighting, communications, ship, aircraft manufacturing and other fields

【Features】

• Meets UL 224, CAN / CSA C22.2 NO198.1 -99
• Heat shrink ratio : 2:1
• Halogen-free , low-smoke emission , non-toxic , flexible , flame retardant , swiftly shrinking
• Min shrink temperature : 70 °C
• Min full recovery temperature : 120 °C
• Continuous operating temperature : -55 °C ~ 125 °C
• Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
• Standard colors: Black, White, Red , Yellow ,Green, Blue ,Clear. More colors are available upon request.

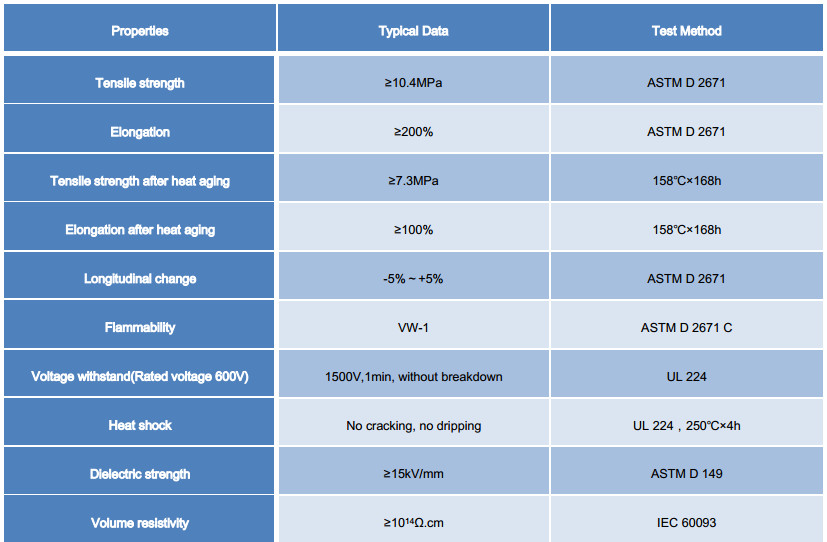

【Technical Performance】

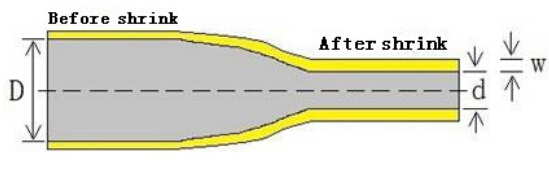

【Structure】

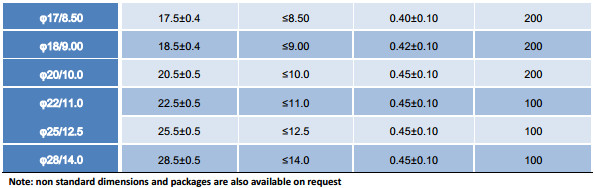

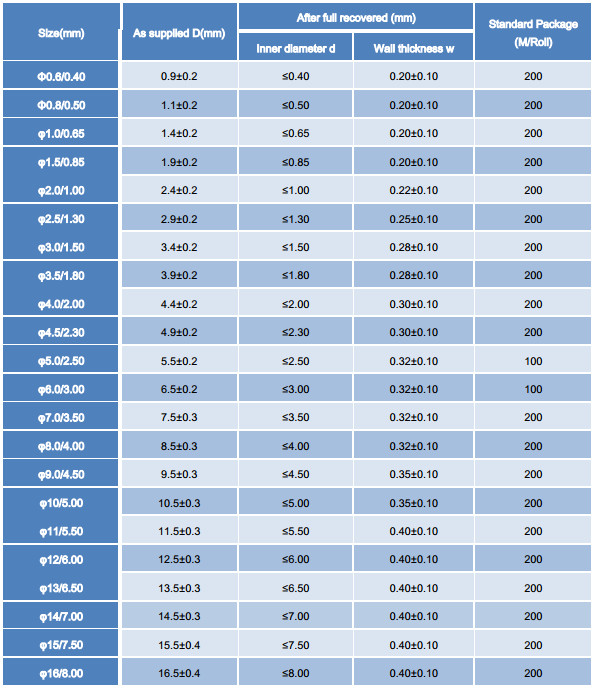

【Dimensions】
