4w/m.k VS-GP4001-PI Flame Retardant High Thermal Conductivity Silicone Thermal Pads
Description

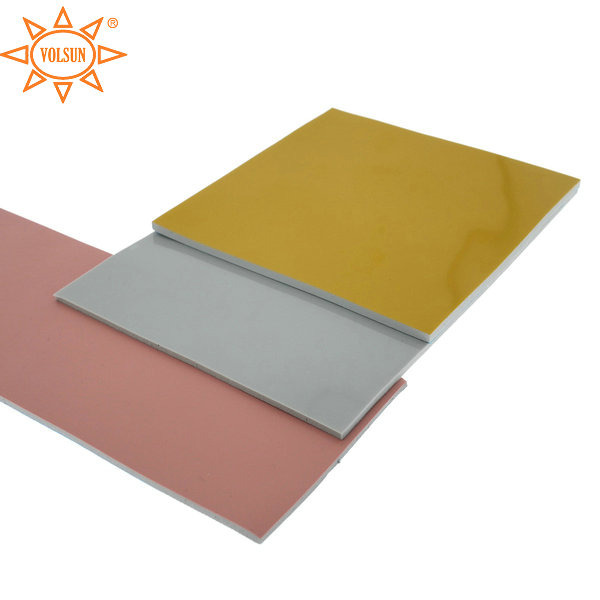

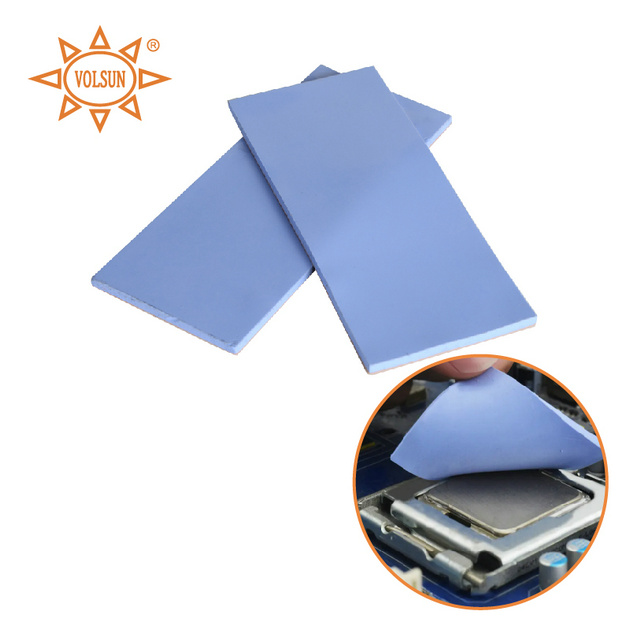

VS-GP4001-PI silicone thermal pad is made of PI tape laminated on the surface of silicone layer. It can achieve low interface thermal resistance under relatively low pressure, and has excellent thermal conductivity, thermal stability, softness and resilience. It is safe and reliable to use. It can be used between power devices and heat sink aluminum sheet or machine housing to effectively remove air and achieve good thermal conductive filling effect.
Features
-
Operating temperature: -40℃~+200℃
-
High thermal conductivity, low thermal resistance
-
Excellent surface wettability and resilience
-
Excellent flame retardancy
-
Multiple thickness selection, wide application range
-
Environmental protection standards: RoHS, REACH
Technical Performance
| Item | Typical value | Test method |
| color | Blue | Visual inspection |
| Density (g/cm3) | 3.2±0.1g/m³ | ASTM D792 |
| Thickness (mm) | 0.5~5.0 | ASTM D374 |
| Hardness (Shore OO) | 25-70 | GB/T 531.1-2008 |
| Tensile strength (KPa) | ≥80 | GB/T 528-2009 |
| Elongation at break (%) | ≥20 | GB/T 528-2009 |
| Thermal conductivity (W/m·k) | 4.0 | ASTM D5470 |
| Flame Rating | V-0 | UL94 |
| Dielectric Breakdown Voltage (kV) | ＞9 | ASTM D149 |
| Volume resistivity | ≥1.0×10 12 | ASTM D257 |

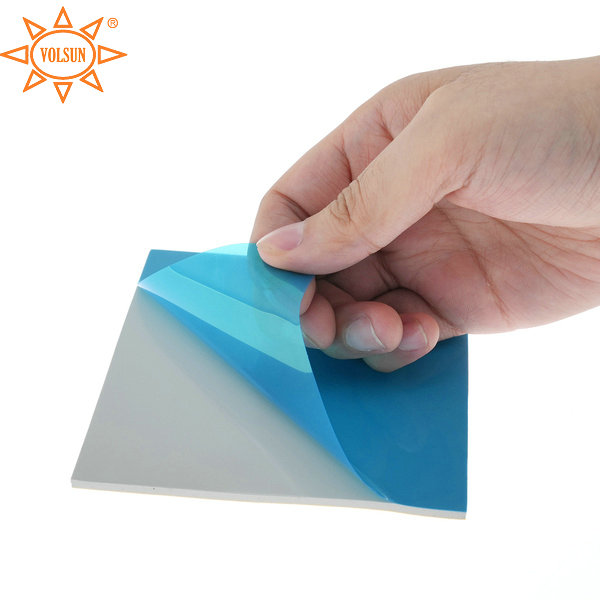

How to Apply Thermally Conductive Silicone Pads?
- Clean the surface of the substrate to be installed before use
- Select products with corresponding specifications based on the dimensions of the installation parts
- The environment should be free of large debris or other pollutants to avoid affecting the installation effect and protective performance of the materials
- The specifications of the product should be similar to the dimensions of the installation site. The deviation should not be too large
Storage conditions & shelf life
- Temperature: 20℃<T<30℃
- Relative humidity: RH<70%
- Shelf life: 12 months from the production date
