RUBLS-CAP
Cold Shrink End Caps

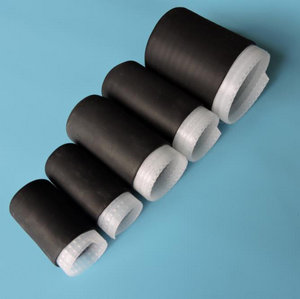

【Description】RUBLS-CAP Cold Shrink End Caps environmentally seal and mechanically protect exposed cable ends using no tools, mastics or tapes. They are close-ended, tubular EPDM rubber sleeves that are factory expanded and loaded onto a removable core. When positioned over the end of a cable, or other cylindrical object, the core is removed to provide a reliable seal that protects your cable ends from environmental damage. They are easily installed and cleanly removable. Whether in transit from the manufacturer, stored in the cable yard, or in process in a trench, your cable ends are protected from exposure to moisture, contamination and corrosion.. Four different end caps are available to accommodate a wide range of sizes.
【Features】
- Simple and fast installation, no tools required.
- Accommodates size ranges from 11.6mm – 84.3mm.
- Good abrasion resistance.
- Seals tight, retains resiliency and pressure even after prolonged years of ageing and exposure.
- Water-resistant.
- No mastic or tape required.
- No torches or heat required.
- Resists fungus.
- Resists acids and alkalis.
- Resists ozone.
- Easily removed.
- No training required for installation.
【Application】
The Volsun RUBLS-CAP End Caps protect cables, pipes and other cylindrical objects from exposure to moisture, contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards.
The Volsun RUBLS-CAP End caps install quickly and cleanly without flame or grease. Cold Shrink end caps are factory expanded on removable inner-supporting plastic cores. Once the end cap is positioned for installation around the end of a cable, the supporting core is unwound and removed. With the core removed, the live-memory action of the specially formulated material shrinks the end cap into position. The constant radial pressure of the Cold Shrink material ensures adorable environmental seal. The Cold Shrink material resists abrasion, fungus, acids or alkalis, and retains its resiliency for years. Freezing or overheating due to ambient temperatures encountered during shipping or storage does not impair the end caps.
【Removal】
Once installed, the Volsun RUBLS-CAP End Caps can be easily removed from the cable. Simply lift the edge of the end cap; slice the material with a utility knife and the end cap comes off cleanly, leaving no adhesive residue or grease.
【Maintenance】
Volsun RUBLS-CAP End Caps are stable under normal storage conditions. Normal storage and stock
Rotation is recommended.

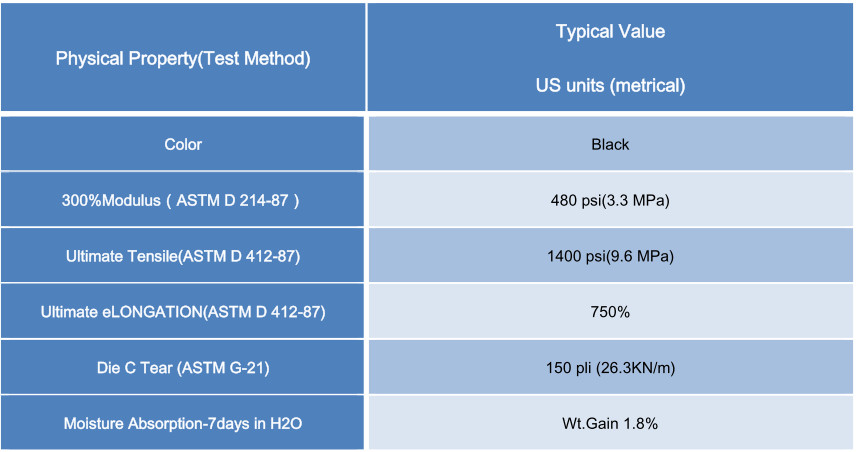

【Properties】
【Selection Chart】
【Important Notice】
