Volsun EPDM Cold Shrink Tube
Today we are introduce our volsun hot selling product: EPDM Cold Shrink tube,In Volsun its name is RUBLS-EPDM.

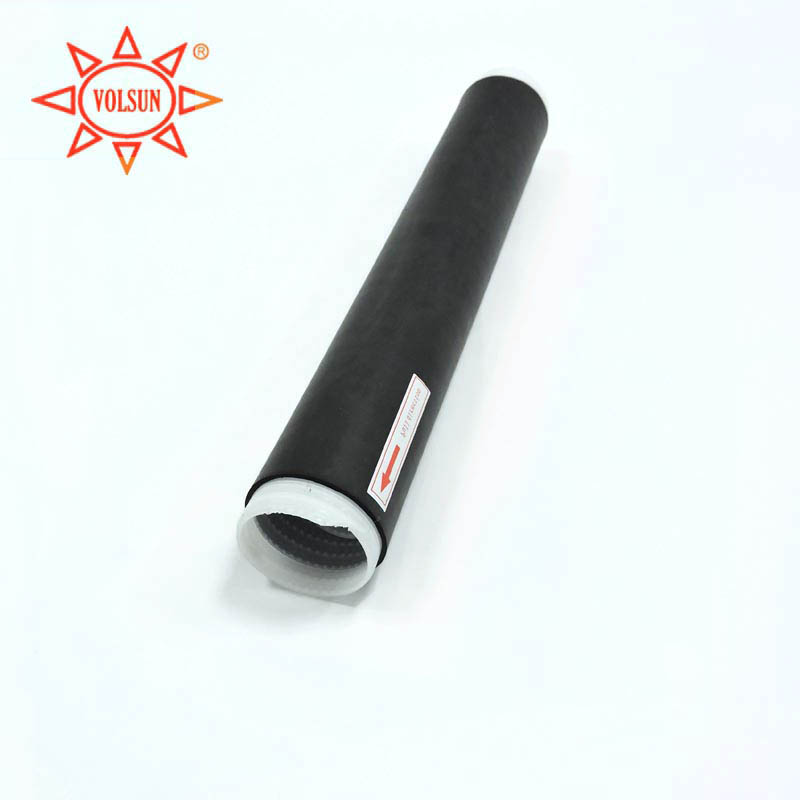

RUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.
Unique Advantages
1.Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing
2.More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing
3.Simultaneously expands and shrinks with workpieces without clearances, seals tight in harsh environment
4.Stably sealing the workpieces in windy environment
5.Well suited for cable less than 1KV
6.Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.
7.Simple , safe installation, requires no tools or special training. No torches or heat work required.
8.Diameter shrinkage 50%
9.Sealing class IP68
Applications
1.Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
2.Meets ANSI C119.1, directly buriable or submersible
3.For indoor, outdoor, or overhead use
4.Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer
cable and lug connections to bus bar
5.Insulation of secondary splices copper or aluminum conductors
6.Relocation of service
7.Dig-in repairs, sheath repairs
8.Insulation of inline conductor transition connectors

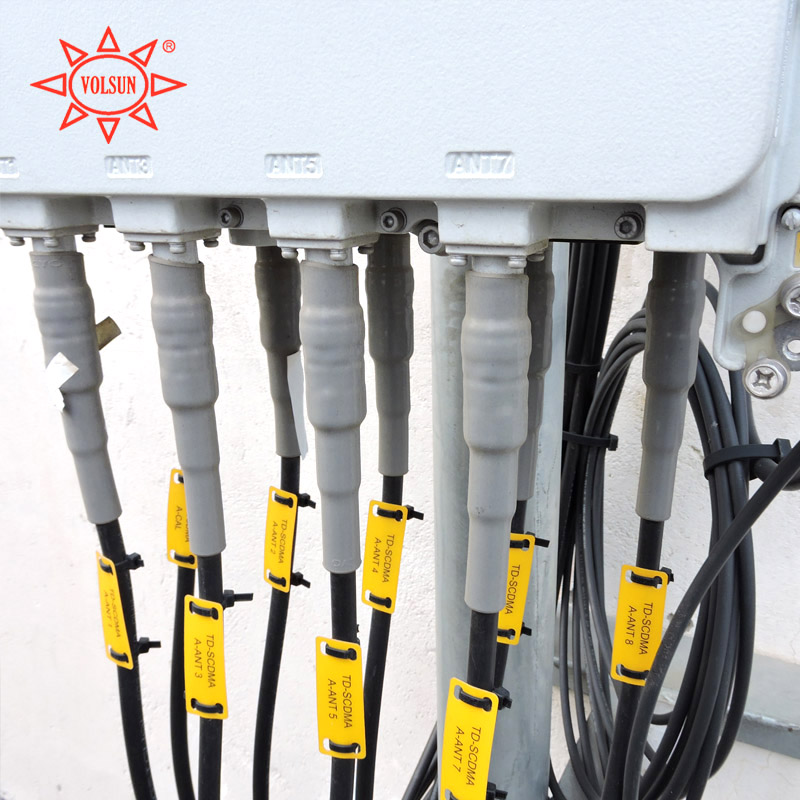

9.Sealing of coax cables with Type N or 7/16 DIN connectors on wireless communication towers
Volsun focus on heat shrink tube, cold shrink tube, silicone tube and some special insulation tube manufacture for over 12 years in China. We are looking forward to establish long term relationship with you and your esteemed company.
