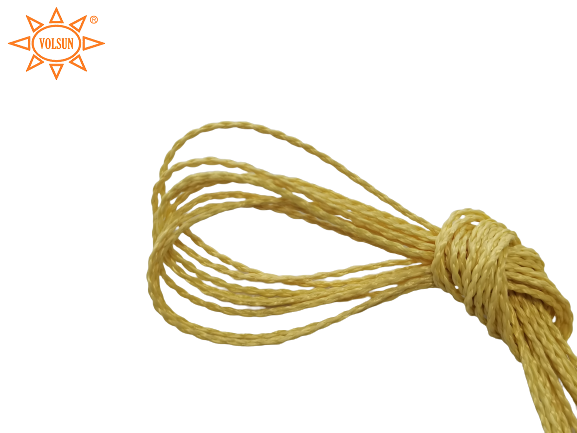

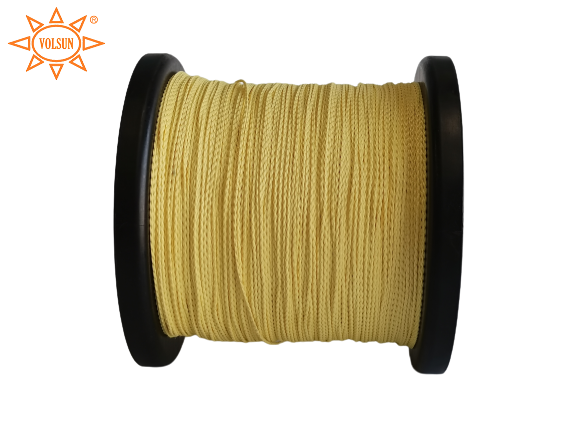

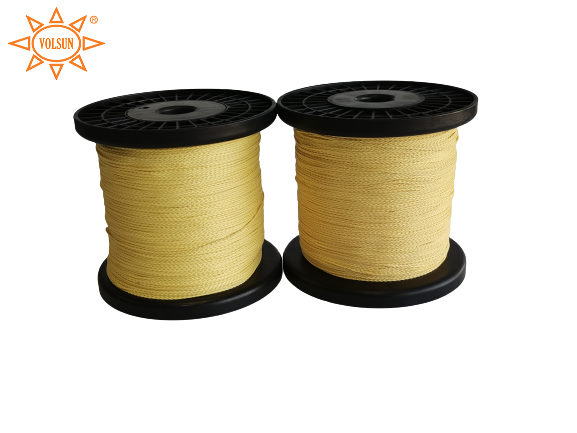

Aramid fiber 1414 lashing rope is one of our main products, it is composed of poly(p-phenylene terephthalamide) fiber which is light，smooth surface, strong and tough mechanical properties, excellent high temperature resistance, corrosion resistance and excellent dielectric properties. It is used in high-performance structural parts of aviation, aerospace, high-speed trains and automobiles, rail transit, nuclear power, hydropower and power grid engineering, high-end insulation materials for large motors and transformers.
The advantages of this banding rope are as follows:
- Temperature Resistance Grade: C
- Color: Light yellow
- Operating Temperature: : -40℃～+200℃
- Light, high strength, excellent aging resistance
- No decompose and melt at high temperature. Alkali corrosion resistance, high temperature resistance
Technical Performance
| Item | Technical Performance | Test Standard |
| Appearance | No burr, No yarn fall off | Visual |
| Oxygen Index | 29% | / |
| Breaking Strength | ≥600N（Φ1.0mm） | GB/T 8834-2016 |
| Elongation at break | ≤10% | GB/T 8834-2016 |
| High temperature resistance | No melting and no coking by visual inspection | FZ/T 63045-2018 （204±5℃，5min） |
Structure
Dimension
| Diameter（mm） | Tolerance（mm） | Package length（m） |
| 1.0 | ±0.2 | 1000 |
| 1.3 | ±0.2 | 1000 |
Please feel free to contact us for more details!
