For years, telecom tower climbers have relied on the traditional "tape-and-mastic" method—wrapping layers of electrical tape, butyl mastic tape, and a final jacket of UV vinyl tape around coaxial jumper connections. While familiar, anyone who has worked on a 4G cell tower in freezing winds or scorching heat knows the reality: manual taping is slow, messy, and prone to human error.
As wireless networks densify with 4G massive remote radio heads (RRU), network operators cannot afford water ingress callbacks. That is why engineering teams are shifting away from multi-layer taping to cold shrink tube weatherproofing.
The Hidden Bottlenecks of Traditional Taping
The conventional 3-layer taping process carries severe operational drawbacks:
- High Craft-Sensitivity: Wrapping tape with the proper 50% overlap and uniform tension requires significant operator skill. A tired technician on a tower at 200 feet can easily leave micro-voids where water tracks inside.
- Thermal Degradation: Over time, temperature swings cause butyl mastic to dry out, lose adhesion, and crack under direct UV radiation.
- Extreme Time Cost: Taping a single 4.3-10 or 7/16 DIN connector junction takes several minutes, adding hours of expensive tower-crew labor per site.
Why Cold Shrink Tube Is the Superior Solution

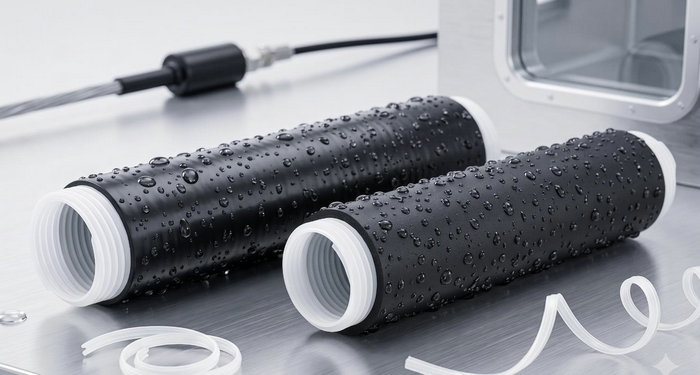

Cold shrink tubing replaces the entire multi-layer manual wrapping process with a single, factory-engineered sleeve. Using pre-stretched silicone rubber supported by a removable plastic spiral core, it delivers immediate advantages:
- Single-Action Poka-Yoke Installation: Slip the sleeve over the cable, mate the connector, and simply pull the inner core ribbon. The tubing contracts automatically in less than 60 seconds—slashing tower installation time by up to 70%.
- Radial Pressure for IP68 Sealing: Unlike rigid heat shrink or aged tape, Volsun® RUBLS-SILIC series silicone cold shrink maintains a continuous "living seal." It exerts dynamic radial tension that expands and contracts alongside cable thermal cycling, ensuring long-term IP68 waterproof performance
- Zero Hot-Work or Tools Required: No torches, heat guns, or specialized knives are needed, making it safe and compliant for all field environments.
- Proven Durability: High-grade silicone provides natural resistance to UV rays, ozone, and extreme temperature ranges.

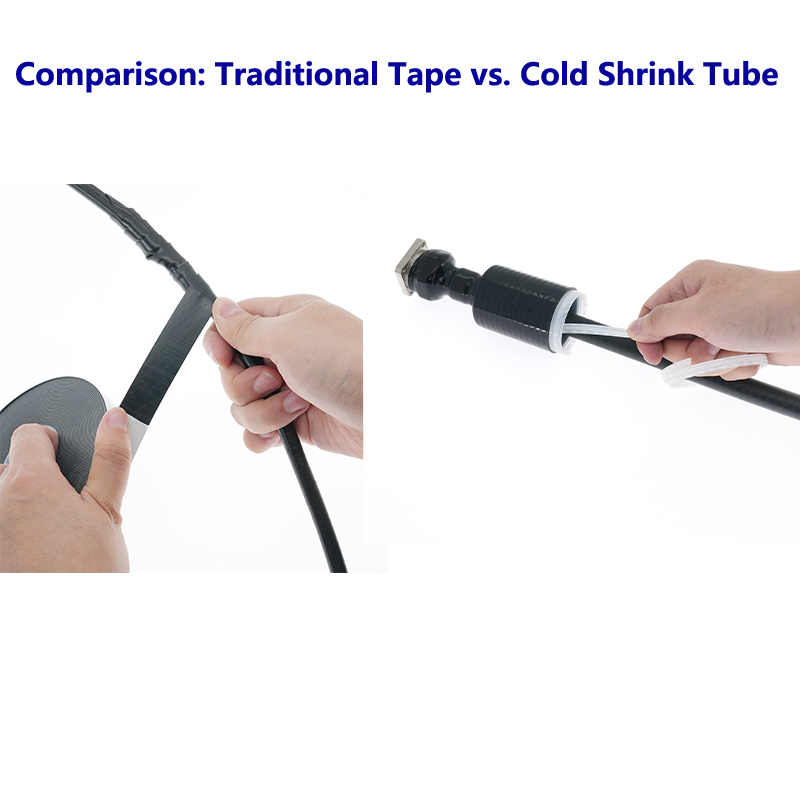

Comparison: Traditional Taping vs. Cold Shrink
| Evaluation Metric | Multi-Layer Tape & Mastic | Volsun® Silicone Cold Shrink |
|---|---|---|
| Installation Time | Several minutes per joint | Under 60 seconds |
| Tool / Flame Requirement | Utility knife / scissors | None (Hand-pulled core) |
| Sealing Mechanism | Adhesive contact (degrades over time) | Radial elastic pressure |
| Human Error Risk | High (depends on wrapping tension) | Extremely Low (Poka-Yoke design) |
| Waterproof Rating | IP65–IP67 (variable) | IP68 |
Making the Strategic Shift
Eliminating multi-layer taping is not just about simplifying toolboxes. By standardizing on pre-expand silicone cold shrink sleeves, telecom infrastructure providers gain durable, weather-tight connections that protect bottom-line network uptime for decades.
