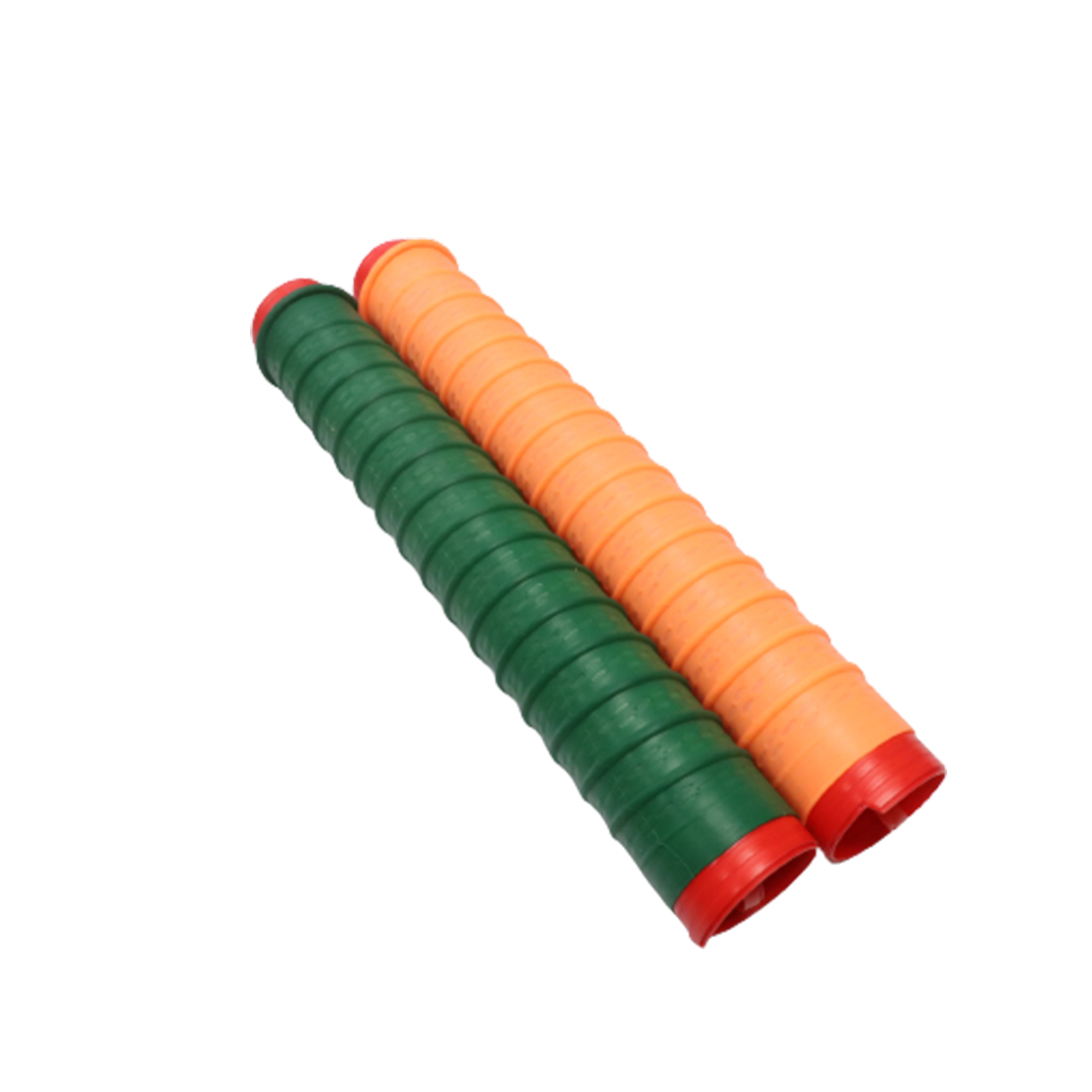

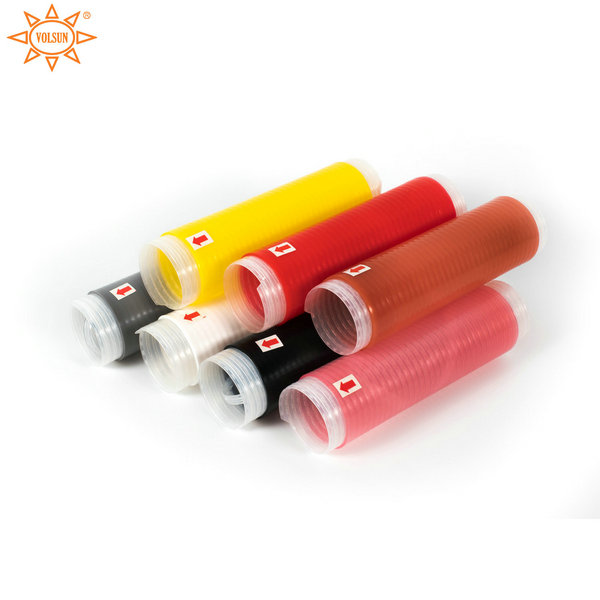

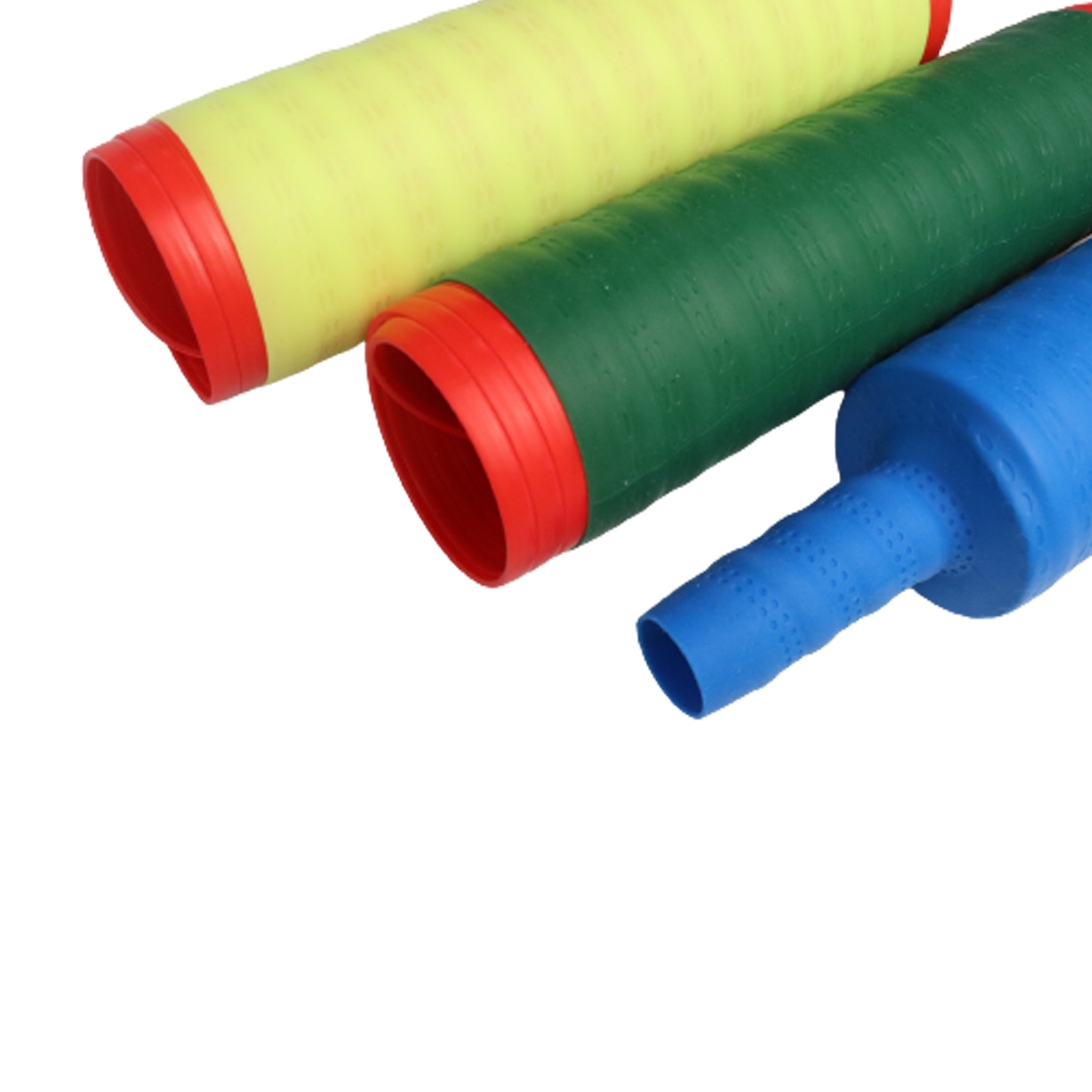

Non-slip Colorful Silicone Rubber Cold Shrink Tube for Handle Grips
Description
The silicone rubber non-slip textured cold shrink tube is made of silicone rubber, which is widely used for tool handle, tennis grip, fishing rod, etc. Due to its high shrink ratio, excellent physical and mechanical properties and puncture resistance, it’s suitable for parts that need to increase anti-skid, sealing, moisture-proof and other effects.
Features
- Operation Temperature: -60℃～200℃
- Protection Function: The elasticity can effectively reduce the friction and impact force between tools and hands, and protect the hand part most effectively
- Ozone aging resistance, UV resistance, Acids and alkalis resistance,Waterproof
- Excellent tear strength, high shrink ratio: 2.5:1
- No heating required
Technical Performance
| Property | Typical Data | Test Method |
| Shore hardness | 40±5 | GB/T 531-2008 |
| Tensile strength | ≥9.0MPa | GB/T 528-2009 |
| 100% Modulus | ≤1.2MPa | GB/T 528-2009 |
| 200% Modulus | ≤2.0MPa | GB/T 528-2009 |
| Elongation at break | ＞800% | GB/T 528-2009 |
| Tear strength | ≥35kN/m | GB/T 529-2008 |
Specifications
| Product Model | D(mm) Inner Diameter | Inner Diameter of After Shrink(mm) |
L(mm) Length of After Shrink(mm) |
| VS-40/15-170 | Ф40 | 17 | 170 |
| VS-44/10-170 | Ф44 | 12 | 170 |
| VS-44/10-220 | Ф44 | 12 | 220 |
| VS-44/10-300 | Ф44 | 12 | 300 |
| VS-45/15-220 | Ф45 | 17 | 220 |
| VS-50/15-300 | Ф50 | 21 | 300 |
Note: The special sizes and packages are upon request.
