Resistant to Salt Spray Acid and Alkali Corrosion IP68 Waterproof Cold Shrink Tube for Outdoor Use
Description

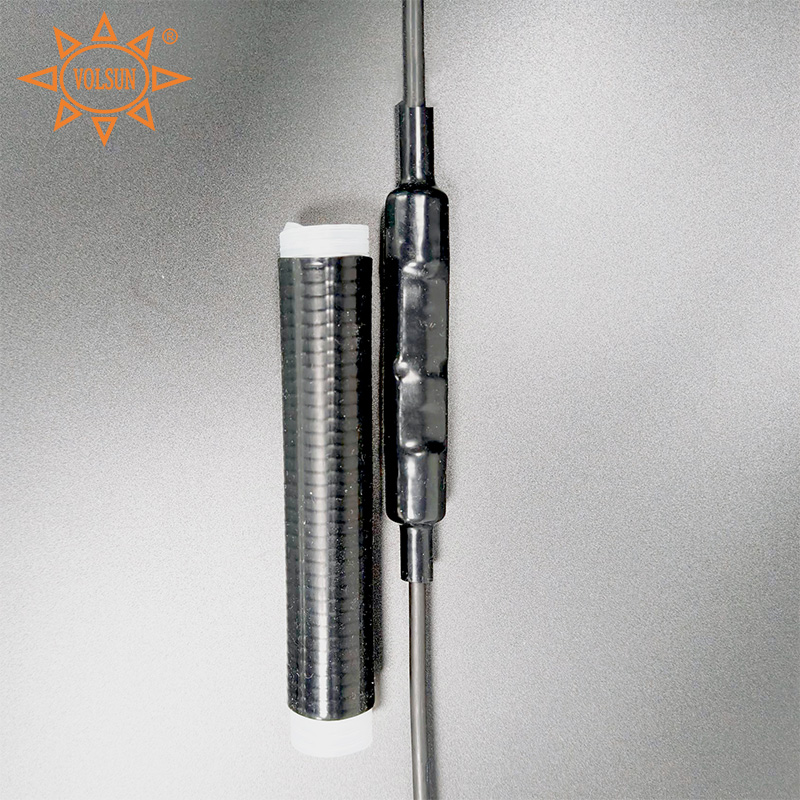

Silicone rubber cold shrink tube, specifically designed for photovoltaic MC4 connectors, is an insulating sleeve made from special silicone rubber, pre-expanded over a removable support tube. Its very high expansion ratio allows it to accommodate the radial size differences between photovoltaic connectors and optical cables. When in use, simply position it and remove the support tube. It utilizes its radial shrinking force to form a tight encapsulation, providing insulation, dust prevention, waterproofing, and sealing effects. Our cold shrink tubes are resistant to UV,salt spray, acid and alkali, can achive IP68 waterproof seal class, also can be used for some special outdoor application, for example, electronics board.
Features
* Continuous operating temperature: -55°C～180°C
* Shrink Ratio : 6:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
* Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
* Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
* Simple installation, requires no special heating tools , and adhesive to seal the connections
* Standard color: black(Other colors can be customized)
Technical Performance
| Properties | Typical Data | Test Method |
| Hardness | 40±5 | GB/T 531-2008 |
| Tensile strength | ≥7.0MPa | GB/T 528-2009 |
|
Tensile strength after aging MPa (232℃×7 D) |
≥ 60% of initial value | / |
| Elongation at break | ＞800% | GB/T 528-2009 |
|
Elongation at break after aging % (232℃×7 D) |
≥25% of initial value | / |
| Tear strength | ≥25kN/m | GB/T 529-2008 |
| Volume resistivity | ≥10 12Ω.m | / |
| Flammability | HB | UL 94 |
|
Requirements for UV/ light aging resistance test |
Tensile strength ≥75% of initial value, no surface damage | / |

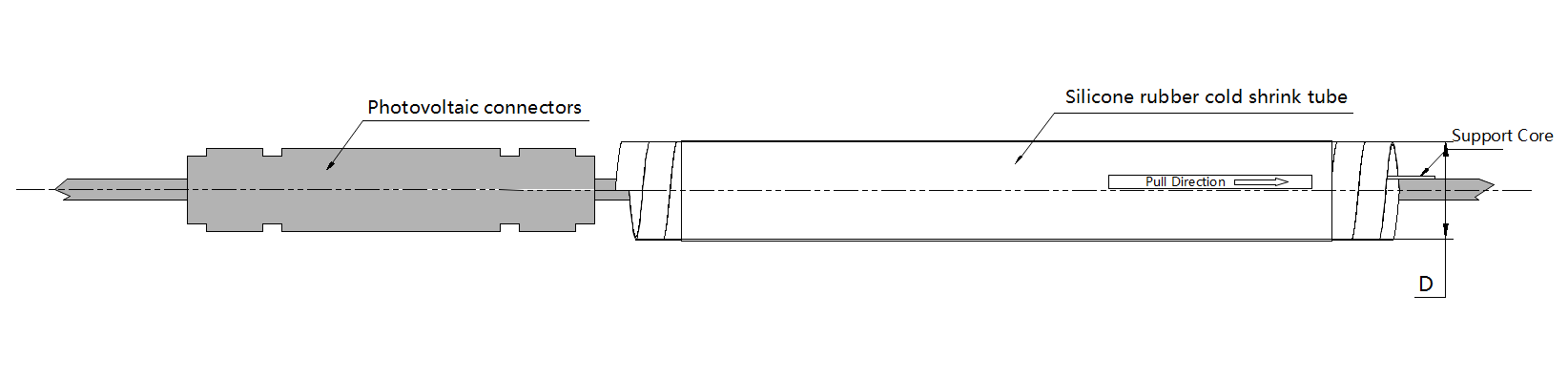

Structure
Dimensionis
| Size |
Inner Diameter (mm)
|
Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm) | Full Recovered Length (mm) |
| VS-25-175 | Ф25 | 6 | 20 | 175 |
Note: Special sizes & packing are avalable on request.

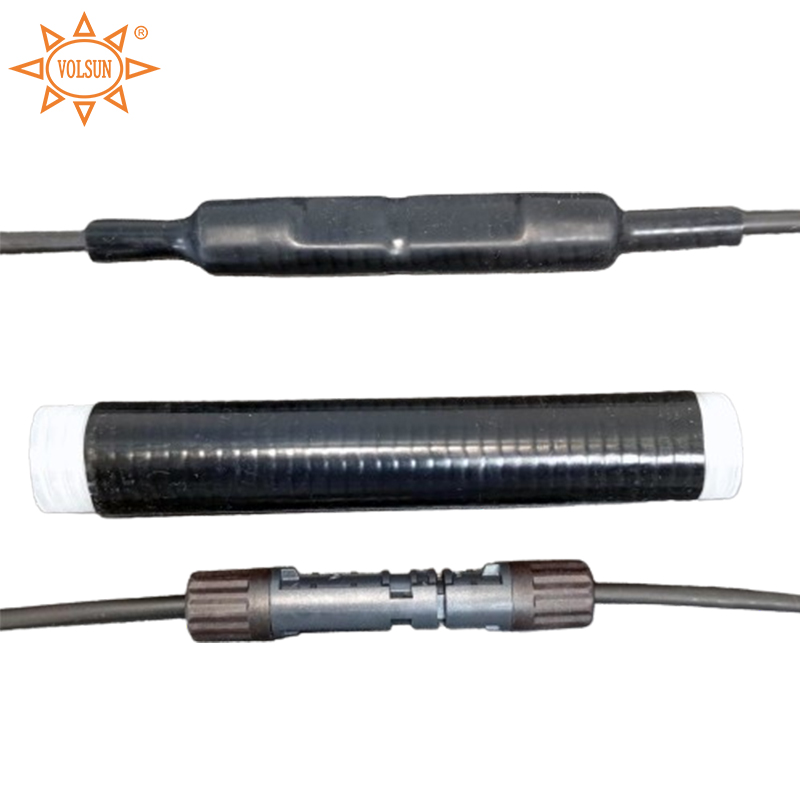

Applications for Offshore Photovoltaic MC4 Connectors-UV Resistant, Salt Spray Corrosion Resistant, Waterproof, Sealing.
