【Description】

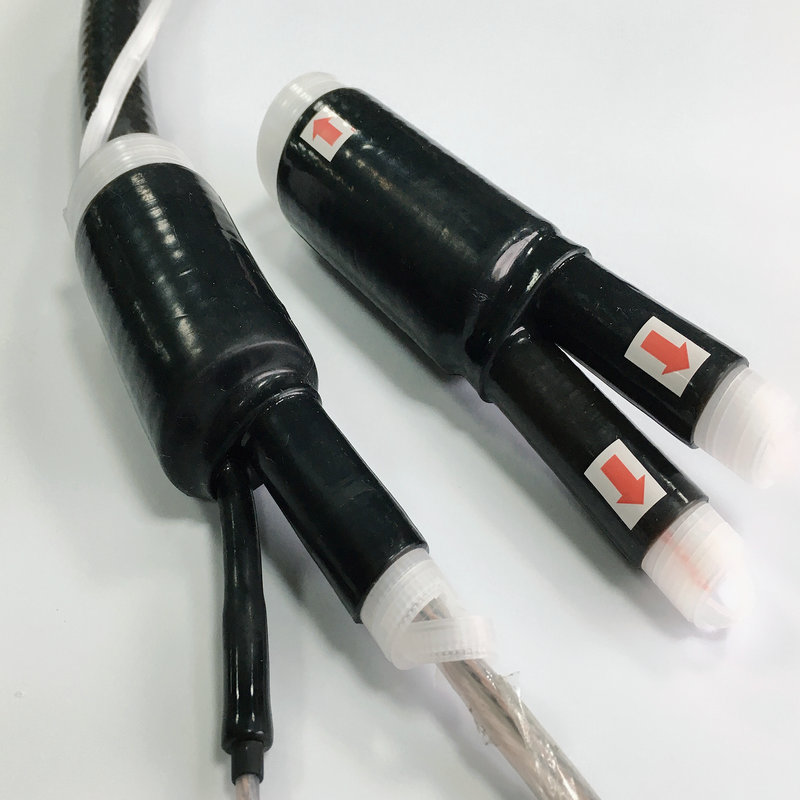

The cold shrink breakout is a rubber insulated finger sleeve which is pre-expanded on the pumpable support tube. When it is used, it only needs to be positioned and then the support tube can be removed, and the radial pressure is used to form the cover, which is waterproof and moisture proof. effect. It has excellent weather resistance, acid and alkali resistance and the same breath sealing effect. It is an ideal sealing product for communication cables, coaxial cables and medium and low voltage power cables.
【Features】
- Suitable for connection seals of different diameters
- Strong resilience, long-lasting radial pressure, long-term moisture resistance, excellent water resistance
- Weather resistance, exposure to sunlight, ozone aging resistance, UV resistance, salt spray corrosion resistance
- Excellent tear strength. After cutting a small opening with a knife, the cutting will not continue to expand.
- Easy to install, no need for heating or special tools, no need for hot melt adhesive or tape to strengthen the joint
- Standard color: Gray
Technical Performance
|
Properties |
Typical Data |
Test Method |
|
Shore Hardness |
40±5A |
GB/T 531-2008 |
|
Tensile Strength |
≥7.0MPa |
GB/T 528-2009 |
|
Elongation at break |
≥600% |
GB/T 528-2009 |
|
Tear strength |
≥27kN/m |
GB/T 529-2008 |
|
Dielectric strength |
≥20kV/mm |
GB/T 1408.1-2006 |
|
Volume resistivity |
≥2×1014Ω.cm |
GB/T 1692-1992 |
|
Dielectric constant |
2.8（50Hz） |
/ |
Three cores breakout dimensions
|
Size |
Before shrink ID（mm） |
After shrink ID（mm） |
Suitable for 8.7/15kV、26/35kV cable core section（mm2） |
||
|
Small end |
Big end |
Small end |
Big end |
||
|
1# |
Φ31±2 |
Φ79±2 |
Φ15+3 |
Φ37+3 |
25-50 |
|
2# |
Φ34±2 |
Φ87±2 |
Φ17+3 |
Φ44+3 |
70-120 |
|
3# |
Φ39±2 |
Φ103±2 |
Φ20+3 |
Φ51+3 |
150-240 |
|
4# |
Φ46±2 |
Φ119±2 |
Φ24+3 |
Φ60+3 |
300-400 or 26/35kV50-95 |
|
5# |
Φ59±2 |
Φ139±2 |
Φ28+3 |
Φ73+3 |
26/35kV 120-240 |
|
6# |
Φ64±2 |
Φ149±2 |
Φ30+3 |
Φ75+3 |
26/35kV 300-400 |
Two different cores cold shrink breakout dimensions
|
Size |
Before shrink ID（mm） |
After shrink ID（mm） |
Suitable for communication wire and cable Diameter（mm） |
||
|
Small end |
Big end |
Small end |
Big end |
||
|
0# |
Φ14±2 |
Φ32±2 |
Φ4.0+3/Φ6.0+3 |
Φ10+3 |
Φ4.0-Φ9.0/Φ11.0- Φ25.0 |
Four cores breakout dimensions
|
Size |
Before shrink ID（mm） |
After shrink ID（mm） |
Suitable for 0.6/1Kv cable core section（mm2） |
||
|
Small end |
Big end |
Small end |
Big end |
||
|
1# |
Φ20±2 |
Φ65±2 |
Φ7+3 |
Φ21+3 |
25-50 |
|
2# |
Φ20±2 |
Φ60±2 |
Φ9+3 |
Φ29+3 |
70-120 |
|
3# |
Φ32±2 |
Φ88±2 |
Φ11+3 |
Φ41+3 |
150-240 |
|
4# |
Φ46±2 |
Φ119±2 |
Φ16+3 |
Φ46+3 |
300-400 |
Five cores breakout dimensions
|
Size |
Before shrink ID（mm） |
After shrink ID（mm） |
Suitable for cable core section（mm2） |
||
|
Small end |
Big end |
Small end |
Big end |
||
|
1# |
Φ20±2 |
Φ79±2 |
Φ7+3 |
Φ27+3 |
25-50 |
|
2# |
Φ25±2 |
Φ87±2 |
Φ9+3 |
Φ37+3 |
70-120 |
|
3# |
Φ35±2 |
Φ109±2 |
Φ12+3 |
Φ48+3 |
150-240 |
|
4# |
Φ40±2 |
Φ119±2 |
Φ12+3 |
Φ48+3 |
300-400 |
