RUBLS-SLT

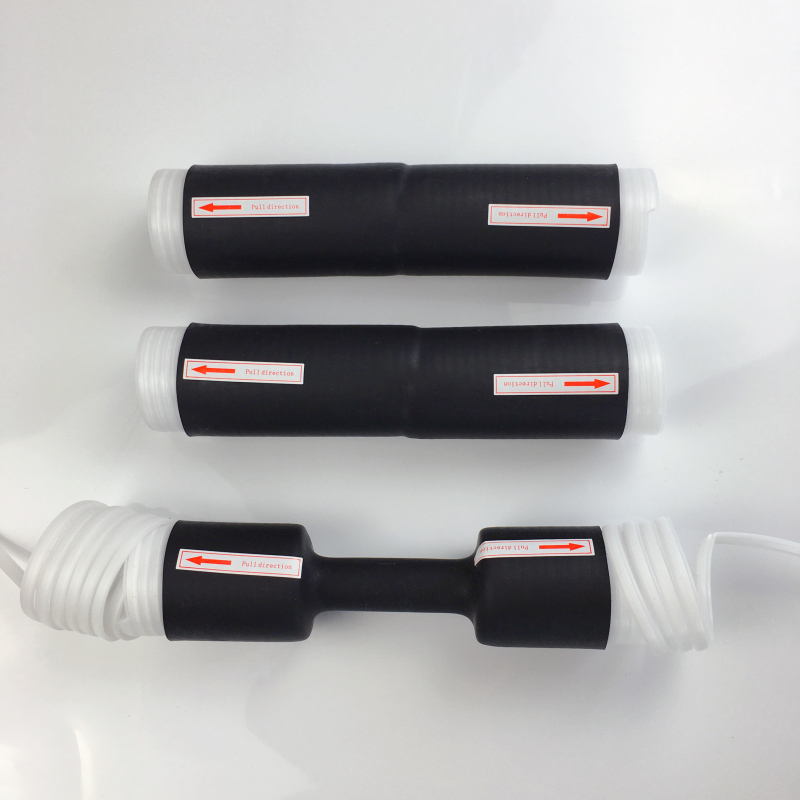

Two Way Pulling Cores Cold Shrink Tube
【Description】
The two way pulling cores cold shrink tube is made of special raw materials. It can be positioned and then the support core can be removed. It has the advantages of large shrink ratio, excellent physical and mechanical properties, and resistance to puncture. Suitable for waterproof and moisture-proof sealing of communication and cable connection connectors, insulation and sealing of wire and cable connection, and insulation protection of other types of connectors.
【Features】
- Synchronous expansion and contraction with the workpiece in a harsh environment, no gaps, tight seals
- Shrink ratio is about 3-4 times, suitable for connection sealing of different diameters
- Strong resilience, long-lasting radial pressure, long-term moisture resistance, excellent water resistance
- Weather resistance, sun resistance, ozone resistance, UV resistance, salt spray corrosion resistance
- Unique two pulling cores structure for accurate positioning
- No need for heating or special tools, no need for hot melt adhesive or tape to strengthen the joint Standard color: Black
【Technical Performance】
|
Properties |
Typical Data |
Test Method |
|
Shore Hardness |
44±5 |
GB/T 531-2008 |
|
Tensile Strength |
≥9.0MPa |
GB/T 528-2009 |
|
Elongation at break |
≥700% |
GB/T 528-2009 |
|
Tear Strength |
≥35kN/m |
GB/T 529-2008 |

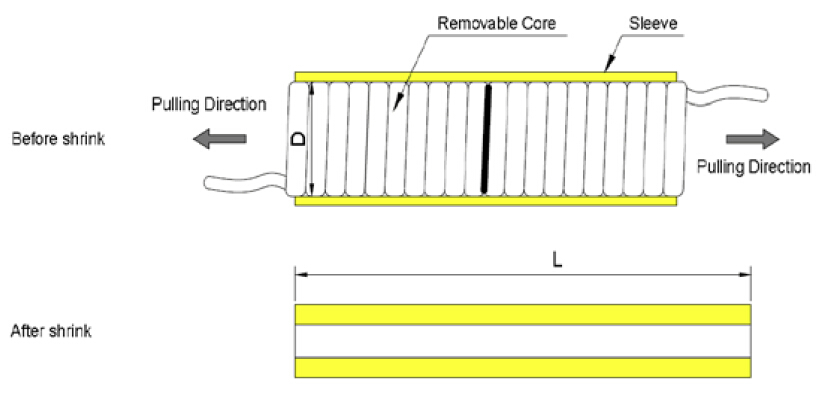

【Structure】
【Dimensions】
|
Size |
Inner diameter (mm) |
Min Cable Outer Diameter (mm) |
Max Cable Outer Diameter (mm) |
Recovered Length L(mm) |
|
VS32-2.2 |
Ф32 |
10.0 |
27.0 |
57 |
|
VS32-2.5 |
Ф32 |
10.0 |
27.0 |
65 |
|
VS32-5 |
Ф32 |
10.0 |
27.0 |
127 |
|
VS32-6 |
Ф32 |
10.0 |
27.0 |
150 |
|
VS32-7 |
Ф32 |
10.0 |
27.0 |
178 |
|
VS32-8 |
Ф32 |
10.0 |
27.0 |
203 |
|
VS32-9 |
Ф32 |
10.0 |
27.0 |
230 |
|
VS32-11 |
Ф32 |
10.0 |
27.0 |
280 |
|
VS32-12 |
Ф32 |
10.0 |
27.0 |
305 |
|
VS35-5 |
Ф35 |
12.5 |
30.0 |
127 |
|
VS35-7 |
Ф35 |
12.5 |
30.0 |
178 |
|
VS35-8 |
Ф35 |
12.5 |
30.0 |
203 |
|
VS35-9 |
Ф35 |
12.5 |
30.0 |
229 |
|
VS35-10 |
Ф35 |
12.5 |
30.0 |
254 |
|
VS35-11 |
Ф35 |
12.5 |
30.0 |
280 |
|
VS35-12 |
Ф35 |
12.5 |
30.0 |
305 |
|
VS40-5 |
Ф40 |
14.0 |
33.0 |
127 |
|
VS40-5.5 |
Ф40 |
14.0 |
33.0 |
140 |
|
VS40-6 |
Ф40 |
14.0 |
33.0 |
152 |
|
VS40-7 |
Ф40 |
14.0 |
33.0 |
180 |
|
VS40-8 |
Ф40 |
14.0 |
33.0 |
203 |
|
VS40-9 |
Ф40 |
14.0 |
33.0 |
230 |
|
VS40-10 |
Ф40 |
14.0 |
33.0 |
254 |
|
VS40-11 |
Ф40 |
14.0 |
33.0 |
280 |
|
VS40-12 |
Ф40 |
14.0 |
33.0 |
305 |
|
VS45-6 |
Ф45 |
14.0 |
39.0 |
152 |
|
VS45-7 |
Ф45 |
14.0 |
39.0 |
178 |
|
VS45-8 |
Ф45 |
14.0 |
39.0 |
203 |
|
VS45-9 |
Ф45 |
14.0 |
39.0 |
230 |
|
VS45-10 |
Ф45 |
14.0 |
39.0 |
254 |
|
VS45-11 |
Ф45 |
14.0 |
39.0 |
280 |
|
VS45-12 |
Ф45 |
14.0 |
39.0 |
305 |
|
VS53-6 |
Ф53 |
19.0 |
46.0 |
152 |
|
VS53-7 |
Ф53 |
19.0 |
46.0 |
178 |
|
VS53-8 |
Ф53 |
19.0 |
46.0 |
203 |
|
VS53-9 |
Ф53 |
19.0 |
46.0 |
230 |
|
VS53-10 |
Ф53 |
19.0 |
46.0 |
254 |
|
VS53-11 |
Ф53 |
19.0 |
46.0 |
280 |
|
VS53-12 |
Ф53 |
19.0 |
46.0 |
305 |
Remark: Special size and package are available on request.
