EPDM Cold Shrink Tube for Electrical Power Cable Protection
Description

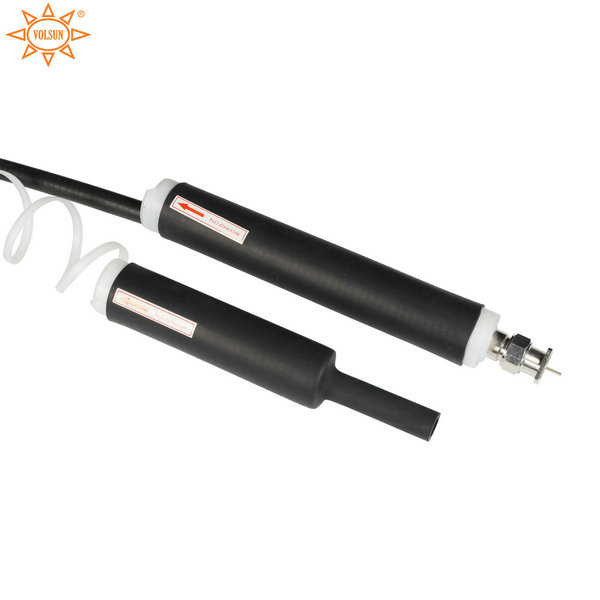

RUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors
Unique Advantages
- Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing
- More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing
- Simultaneously expands and shrinks with workpieces without clearances, seals tight in harsh environment
- Stably sealing the workpieces in windy environment
- Well suited for cable less than 1KV
- Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.
- Simple , safe installation, requires no tools or special training. No torches or heat work required.
- Shrink Ratio:3.5:1
- Sealing class IP68
Technical Performance
| Item | Typical value | Test method |
| Shore Hardness | 45±5 | GB/T 531-2008 |
| Tensile Strength | ≥8.6MPa | GB/T 528-2009 |
| Elongation at Break | ＞800% | GB/T 528-2009 |
| Tear Strength | ≥25kN/m | GB/T 529-2008 |
| Dielectric strength | 15kV/mm | ASTM D149 |
Application Range
- Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
- Meets ANSI C119.1, directly buriable or submersible or indoor, outdoor, or overhead use
- Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus bar
- Insulation of secondary splices copper or aluminum conductors Relocation of service Dig-in repairs, sheath repairs
- Insulation of inline conductor transition connectors
- Sealing of coax cables with Type N or 7/16 DIN connectors on wireless communication towers
Dimensions
| Size (mm) | Inner Diameter D(mm) | Min Cable Outer diameter (mm) | Max Cable Outer Diameter (mm) | Recovered Length L(mm) |
| VE18-6 | 18 | 7.8 | 14.3 | 152 |
| VE24-8 | 20 | 2.54 | 20.9 | 203 |
| VE25-8 | 25 | 10.1 | 20.9 | 203 |
| VE28-5 | 28 | 8.0 | 22.5 | 125 |
| VE35-9 | 35 | 13.9 | 30.1 | 229 |
| VE35-11 | 35 | 13.9 | 30.1 | 279 |
| VE42-8 | 42 | 16.8 | 35.1 | 203 |
| VE42-10 | 42 | 16.8 | 35.1 | 254 |
| VE50-8 | 50 | 13.5 | 43.7 | 203 |
| VE58-6 | 58 | 24.0 | 49.3 | 152 |
| VE58-24 | 58 | 24.0 | 49.3 | 610 |
| VE65-10 | 65 | 23.7 | 57.5 | 254 |
| VE77-6 | 77 | 32.2 | 67.8 | 152 |
| VE77-18 | 77 | 32.2 | 67.8 | 457 |
| VE105-8 | 105 | 42.6 | 93.7 | 203 |
| VE105-9 | 105 | 42.6 | 93.7 | 229 |
| VE105-18 | 105 | 42.6 | 93.7 | 457 |
| VE105-20 | 105 | 42.6 | 93.7 | 508 |
| VE120-24 | 120 | 33.0 | 114.3 | 610 |
| VE160-24 | 160 | 60.0 | 154.0 | 620 |
Remark：Special sizes & packing are available on request.
Production Workshop
Frequently Asked Questions
1. Why choose us ?
VOLSUN specializes in the production of cold shrink tubes with more than 18 years experience, we are commited
to produce cold shrink tubing with high quality performance and competitive price, we also offer 7/24 hours online service.
2. What payment terms can we accpet?
Normaly 30% deposit is required in advance, 70% balance shall be setled before shipment. Payment methods include T/T, Paypal, etc.
3. What is the product range of our factory?
VOLSUN is a leading and professional manufacturer that speciaizing in waterproof, sealing, insulation, fireproof solutions. We can also customize non-standard products based on customers' requirements.
4. What Certificates do we have?
All products meet with the 1SO 9001 Quality System, RoHS, REACH, we also have related performance test report including 1,000 hours UV resistance test, IP68 waterproof seal test, ect.
5. What about our delivery time?
For regular and standard size cold shrink tube, we always have in stock and can delivery within 7 days. For customized sizes with special requirements, welcome to contact our sales team to confirm it.
