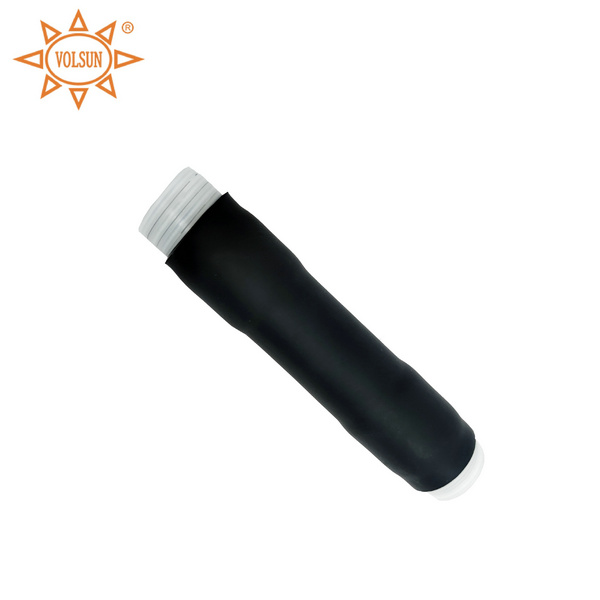

EPDM Cold Shrink Tube with Mastic
Advantages
- IP68 waterproof sealing class
- Operating temperature: -40~200°C
- Simple installation, no heat requires
- Seals tight, retains its resiliency and pressure even after long time
- UV and Ozone Resistant
- Waterproof for outdoor use
Description
Volsun EPDM cold shrink tubes with Mastic are rubber insulating sleeves that are pre-expanded over a removable support mandrel. In use, simply position and then remove the support mandrel, allowing the tube to utilize its radial force to form a tight wrap, serving to provide waterproofing and moisture-proof sealing. They are primarily used for the insulation and sealing of cable joints.
Technical Performance
| Item | Typical data | Test method |
| Tensile strength / Mpa | ≥8.0 | GB/T 528-1998 |
| Elongation at break % | ≥700 | GB/T 528-1998 |
| Shore A hardness | 45±5 | GB/T 528-1998 |
| Tear strength / N/MM | ≥22 | GB/T 529-2008 |
| Volume resistivity | ≥1012 | ASTM D 257-07 |
| Sealing | IP68 | / |
| Ozone resistant | 40°C + 50 PPHM + 50 hours | DIN53509-2-2001 |
| UV-resistance | 40°C + 1000 Hours | IEC60068-2-5-2010 |
| Low-temperature resistant | -40 ℃ | ISO 812 |
| Flame retardant | V-1 | UL94 |

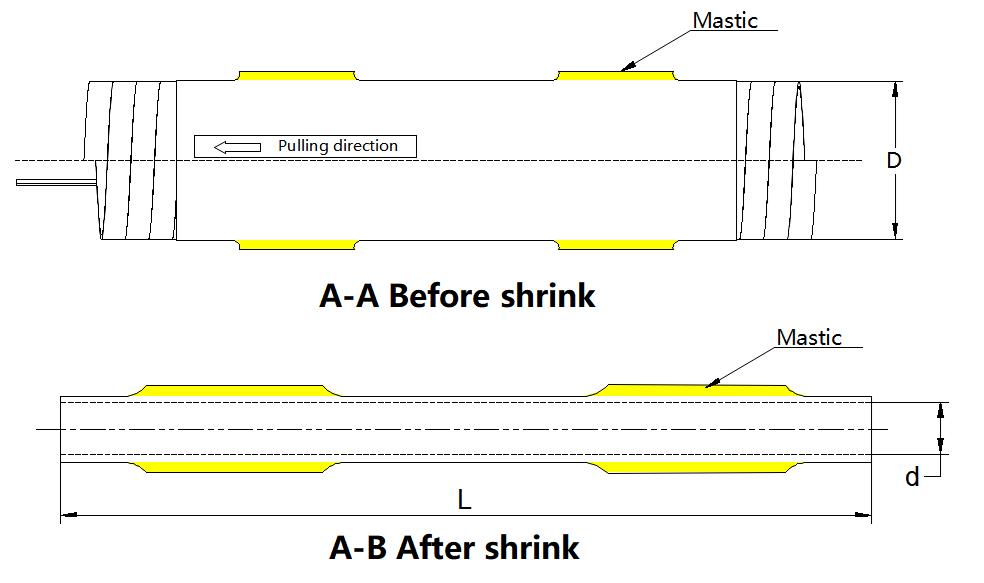

Structure
Dimensions
| Type |
Expanding D (mm) |
Recovery(mm) | Cover range (mm) | |
| d | L | |||
| VS-25*150 | ≥25 | ≤8 | 150±3 | 11-20 |
Note: Other sizes are available on request.
