SBRS-125G(2X)(3X)(4X)
Environmentally Friendly Adhesive lined Dual Wall Heat Shrink Tubing

【Description】
    SBRS-125G(2X) (3X) (4X)is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive,with superior sealing capability, is also a buffer against mechanical strain.Dual wall heat shrink tubing is designed to provide superior sealing against water,corrosive gas and chemicals.Typical applications include environmental sealing of in-line splices, sealing and strain relief of connectors and terminals,abrasion protection and electrical insulation of automotive wiring harness splices and valuable components, fleet & marine sealing & protection and wire bundling etc.

【Features】

• Standard: UL 224
• Shrink ratio:2:1 3:1 4:1
• Flame retardant out layer, environmentally friendly, UV resistant
• Continuous operating temperature:-45°C ~125°C（ -45°C ~105°C for clear ）
• RoHS compliant
• Standard colors: Black, Clear .More colors are available upon request.

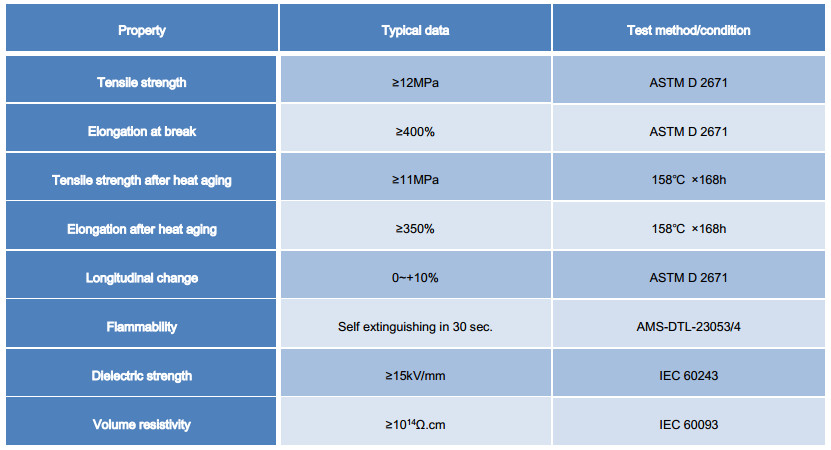

【Technical Performance】

【Structure】



【Dimensions】

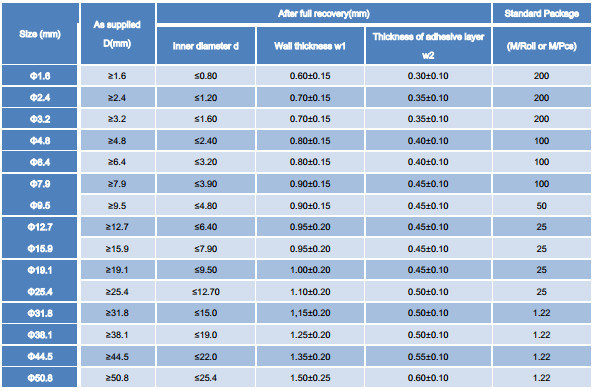

Shrink Ratio:2:1

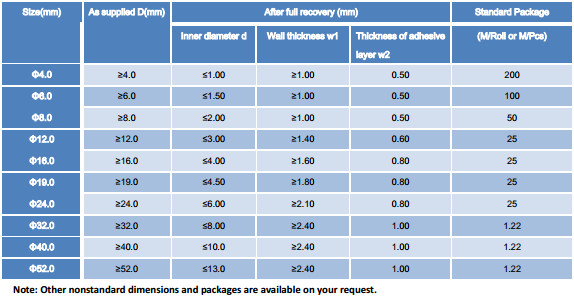

Shrink Ratio:3:1

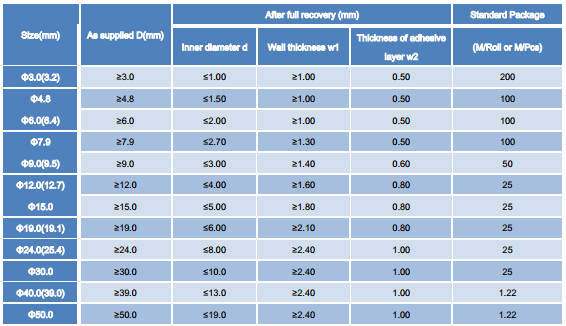

Shrink Ratio:4:1
