TZRS-DR150 (2X)
Diesel Resistant Modified Elastomeric Heat Shrink Tubing



【Description】
TZRS-DR150(2X) is a high performance, rugged heat shrinkable tubing designed for harsh operating conditions. T h e tubing is made from flexible elastomeric polyester and has a continuous operating temperature range of -55°C (-70°F) to 150°C (302°F). TZRS-DR 150(2X) is resistant to a wide range of solvents and chemicals including aviation fuel, diesel fuel, lubricating oils and hydraulic fluid. Volsun TZRS-DR 150(2X) tubing is specifically designed to pass the SC-X15111C military specification but also meets the functional requirements of MIL-DTL-2 3 0 5 3 / 1 6.



【Features】

• Flexible, flame retardant
• Shrink Temperature:90°C ~150°C
• Continuous Operating Temperature:-75°C~150°C
• Shrink Ratio:2:1
• RoHS Compliant
• Standard colors :Black

【Structure】

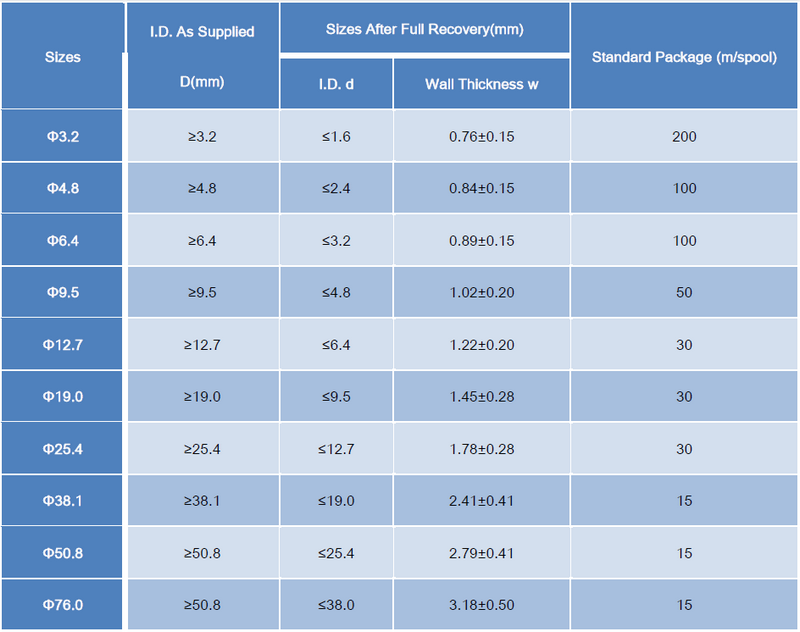

【Dimensions】



    Note: Non-standard dimensions and package are available on request

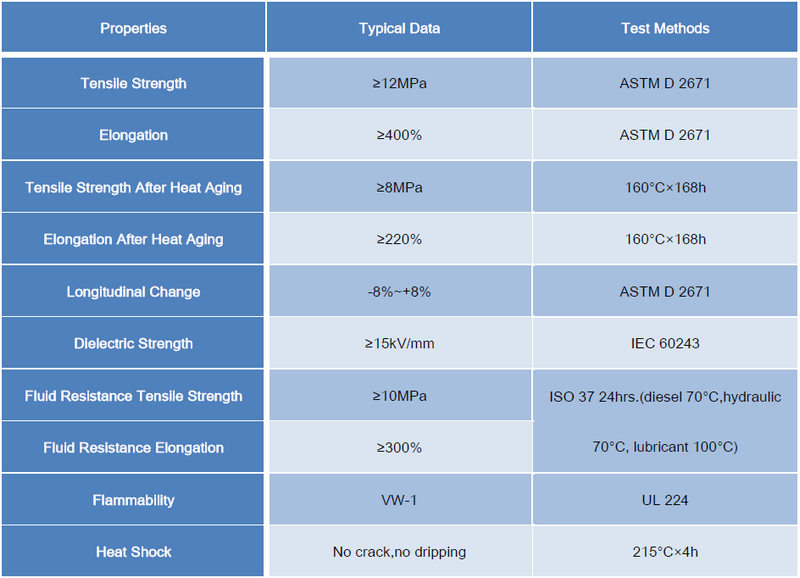

【Technical Performance】
