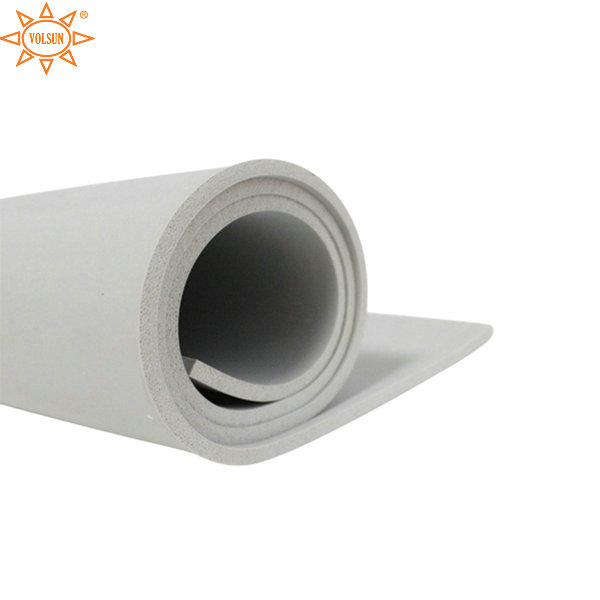

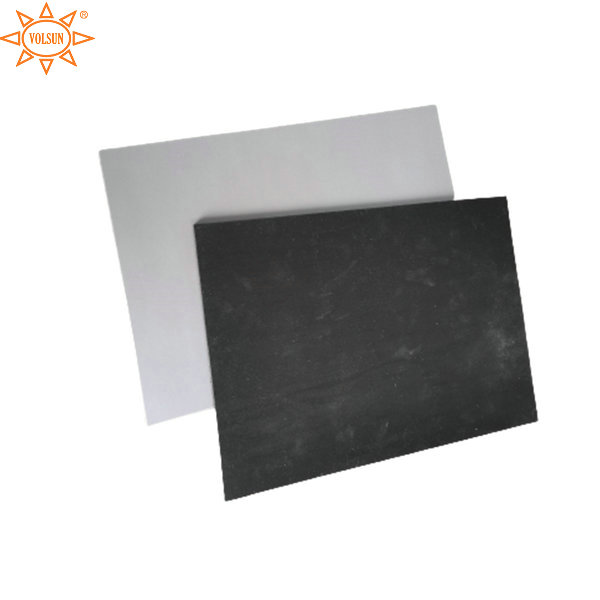

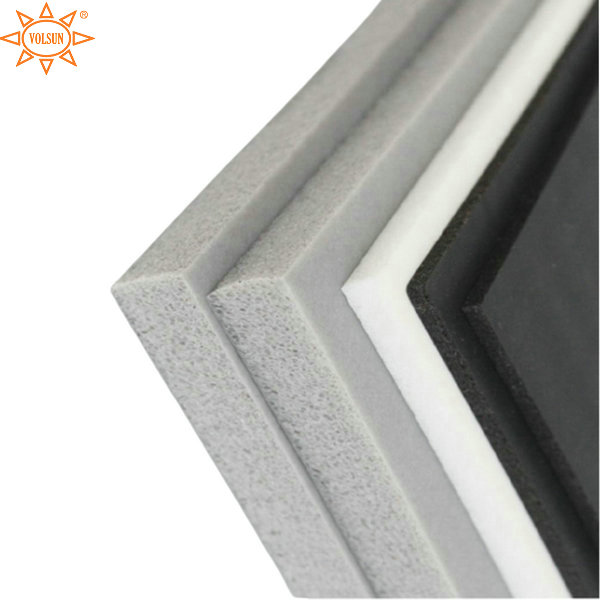

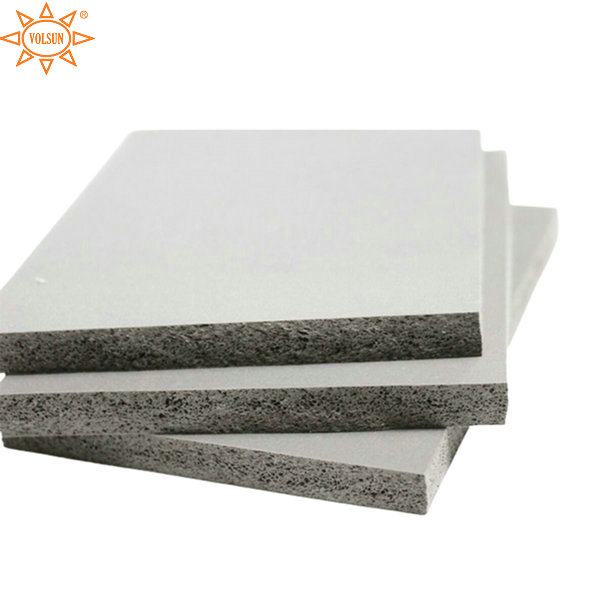

Volsun Buffering Sealing Silicone Foam



Description

Silicone foam (high density/medium density/low density) is a kind of compressible polymer elastomer material made by mixing evenly and special technology, which is made of raw materials including silicone rubber rubber, filling and reinforcing agent, vulcanization promoter and foaming agent. It is used for shock absorption, buffering, sealing, heat insulation, sound insulation and other protection of high-speed railway, locomotive, high-pressure assembly, outdoor waterproof, lamps and household appliances.




Feature

• V0 Flame retardant
• Color：Grey、Black
• Light weight, easy to install and use
• Operating temperature：-40℃~+220℃
• Acid and alkali corrosion resistance, good air tightness
• High softness, good elasticity, odorless and environmentally friendly
• Excellent ozone and UV aging resistance

Technical Performance

Items	S3022-H (high density）	S3022 (medium density）	S3021 (low density）	Test Standard
Flame retardant	V0	V0	V0	UL94
Compression set（100℃）	≤5%	≤5%	≤5%	ASTM D1056
Tensile strength	≥0.4MPa	≥0.3MPa	≥0.15MPa	ASTM D412
25% Compressive stress	70-150kPa	40-100kPa	15-60kPa	ASTM D1056
Elongation at break	≥80%	≥80%	≥80%	ASTM D412
water absorption	≤5%	≤5%	≤6%	Room-temperature 24h
Volume resistivity	≥1014（Ω·cm）	≥1014（Ω·cm）	≥1014（Ω·cm）	ASTM D257
Thermal conductivity	0.08W/m°k	0.09W/m°k	0.08W/m°k	ASTM C518
Dielectric strength	≥2.6kV/mm	≥2.5kV/mm	≥2.4kV/mm	ASTM D149
Density	0.43g±0.05g/cm3	0.33±0.05g/cm3	0.24±0.04g/cm3	ASTM D1056
Toxic gas emission evaluation	Pass	Pass	Pass	SMP-800C
Ozone resistance	Pass	Pass	Pass	GM 4486P
Corrosion resistance	Pass	Pass	Pass	AMS 3568

Dimension

Thickness (mm）	Tolerance (mm）	Packing length (M/Roll）
1	±0.1	30
2	±0.2	30
3	±0.3	30
4	±0.4	10
5	±0.5	10
6	±0.6	10
7	±0.7	10
8	±0.8	5
9	±0.9	5
10	±1.0	5

Note：Special size and packing are available on request.
