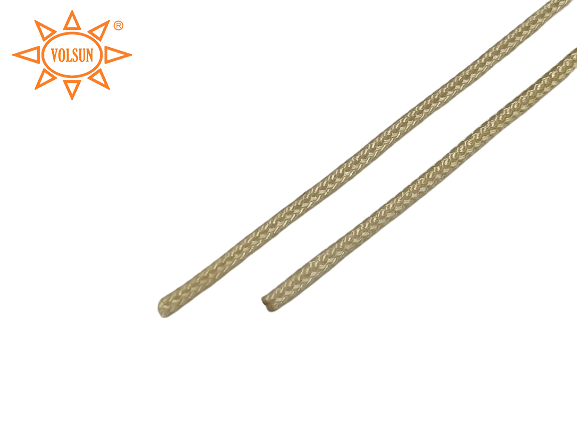

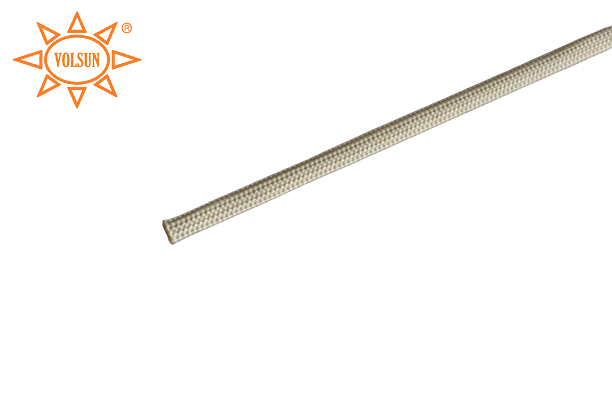

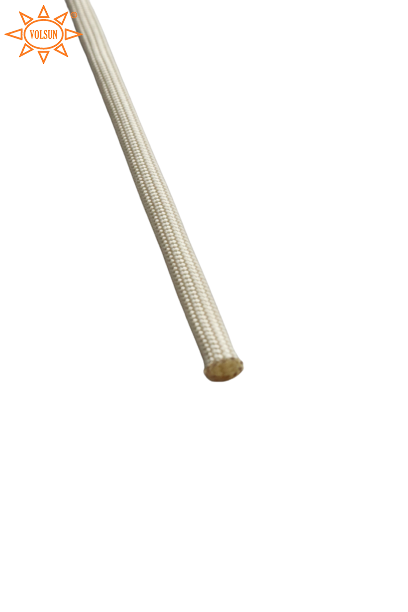

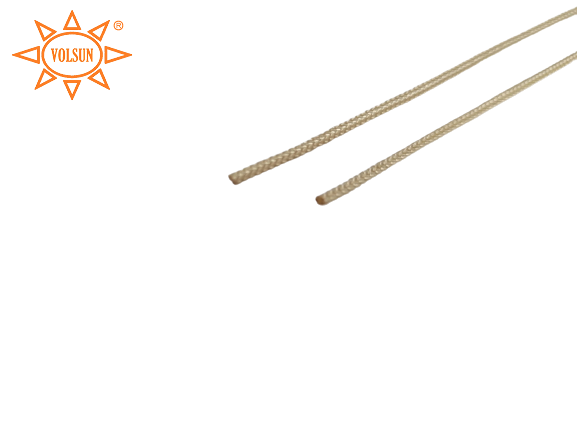

PPS Braided Sleeve Manufacturer
Description
It is woven from polyphenylene sulfide fiber, which has excellent high temperature resistance and tensile strength. It is used for mechanical protection and high and low temperature protection.
Features
- Operating temperature: -70℃～200℃
- Mechanical protection, high and low temperature protection
- Halogen-free, self-extinguishing away from fire
- Good chemical resistance
Technical Performance
| Item | Technical Data | Test standard |
| Heat aging | No internal crack, no dents on the outer surface | IEC60684（200℃，168h） |
| Flammability rating | V0 | UL94 |
| Low temperature performance | Winding on the mandrel, there is no cracking on the surface, no peeling or delamination | IEC60684（-70℃，4h） |
| Longitudinal shrinkage performance | Vertical shrinkage up to 10% | IEC60684（175℃，4h） |
| Breakdown voltage | ≥800V | GB/T 7113.2-2014 |
Dimension
| Size | Size Range | Package length（m） | |
| Inner diameter（mm） | Min.（mm） | Max.（mm） | |
| 2.0 | 1.5 | 2.5 | 500 |
| 3.0 | 1.5 | 4.5 | 500 |
| 4.0 | 2 | 5 | 500 |
| 5.0 | 3 | 6 | 500 |
| 6.0 | 4 | 8 | 100 |
| 7.0 | 5 | 10 | 100 |
| 8.0 | 6 | 12 | 100 |
| 9.0 | 7 | 13 | 100 |
| 10.0 | 8 | 13.5 | 100 |
| 15.0 | 10 | 20 | 100 |
