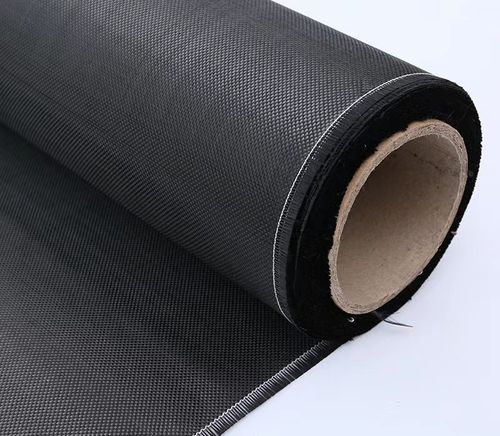

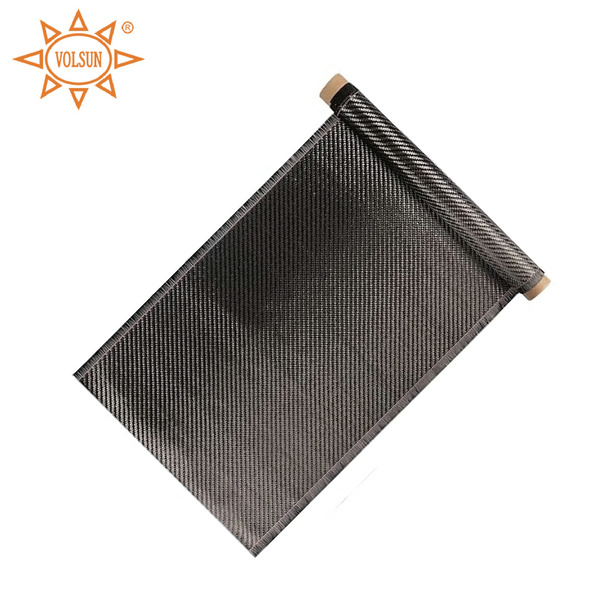

Volsun High Quality Bi-directional Carbon Fiber Cloth


Description

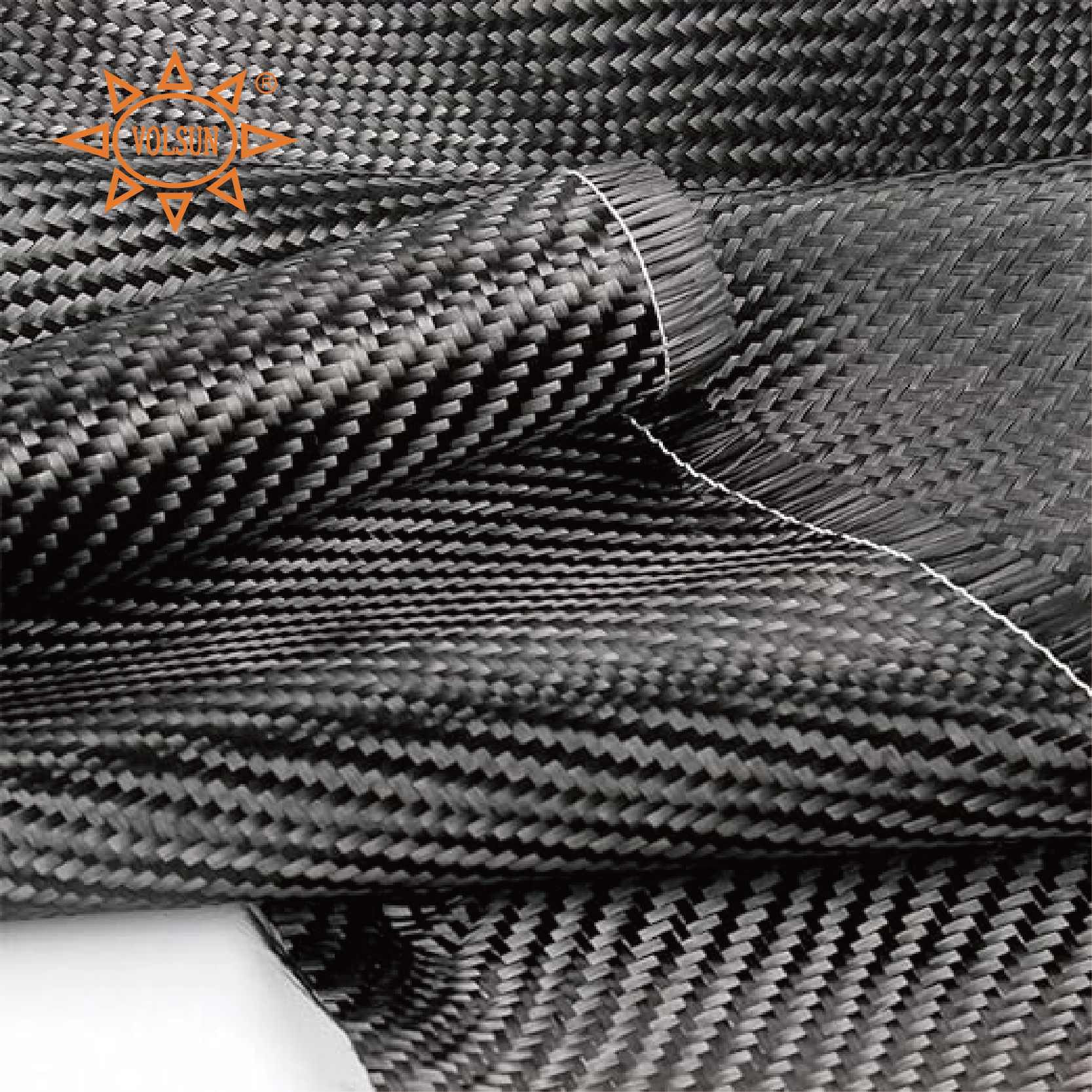

The VS series of bi-directional carbon fiber cloth is made of high-strength carbon fiber in a weaving process that maintains constant tension on the yarns, ensuring straight fiber bundles. It boasts advantages such as light weight, high strength, excellent durability, and corrosion resistance. An effective shaping process is used to prevent loose deformation when the cloth is cut. The cloth can be woven in plain, twill, or satin weaves using 1K, 3K, 6K, 12K, 24K carbon fiber as raw material. The product is mainly used in aerospace, automotive and motorcycle parts, sports equipment, building reinforcement, and various decorative items.


Features

• Light weight, high strength, with a specific gravity of only one-fourth that of steel structures, and tensile strength exceeding that of steel.
• Made of carbon fiber with superior performance, featuring a sleek black luster and resistance to fuzzing.
• Uniform texture, tight structure, and consistent tension.
• Processable, the carbon fiber woven cloth can be cut, laminated, and shaped as needed to adapt to different application requirements.

Technical Performance

Item	Specification Value	Reference Standard
Tensile Strength	≥3400MPa	GB3354-2014
Tensile Elastic Modulus	230GPa	GB3354-2014
Elongation Rate	≥1.6%	GB3354-2014
Flexural Strength	≥700MPa	GB3354-2014

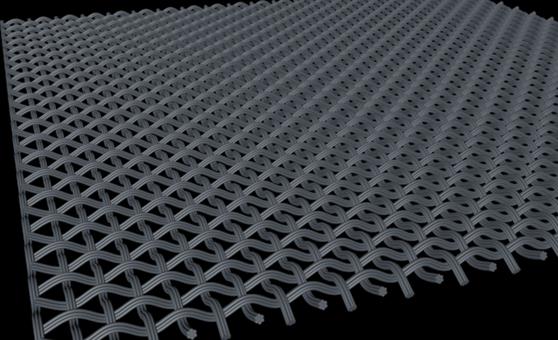

Structure





Dimensions

Product Name	Model	Fabric Structure	Nominal Weight（g/㎡）	Cloth Length（m）	Width（cm）	Yarn Density（Strand/cm）
						Warp Yarn Density	Weft Yarn Density
Carbon Fiber Bi-directional Woven Cloth	VS20-3KPS	Plain Weave	200	100	100	50	50
	VS20-3KP	Plain Weave	200	100	100	50	50
	VS20-3KXS	Twill Weave	200	100	100	50	50
	VS20-3KX	Twill Weave	200	100	100	50	50
	VS24-3KPS	Plain Weave	240	100	100	60	60
	VS24-3KPS	Plain Weave	240	100	100	60	60
	VS24-3KXS	Twill Weave	240	100	100	50	70
	VS24-3KXS	Twill Weave	240	100	100	50	70
	VS36-12KP	Plain Weave	360	25-100	100	22	22
	VS40-12KP	Plain Weave	400	25-100	100	25	25

Note: Special sizes and packaging can be customized upon request.
