F Class Acrylic Coated Fiberglass Sleeve Insulation Protection Acrylic Glass Fiber Sleeving



Description

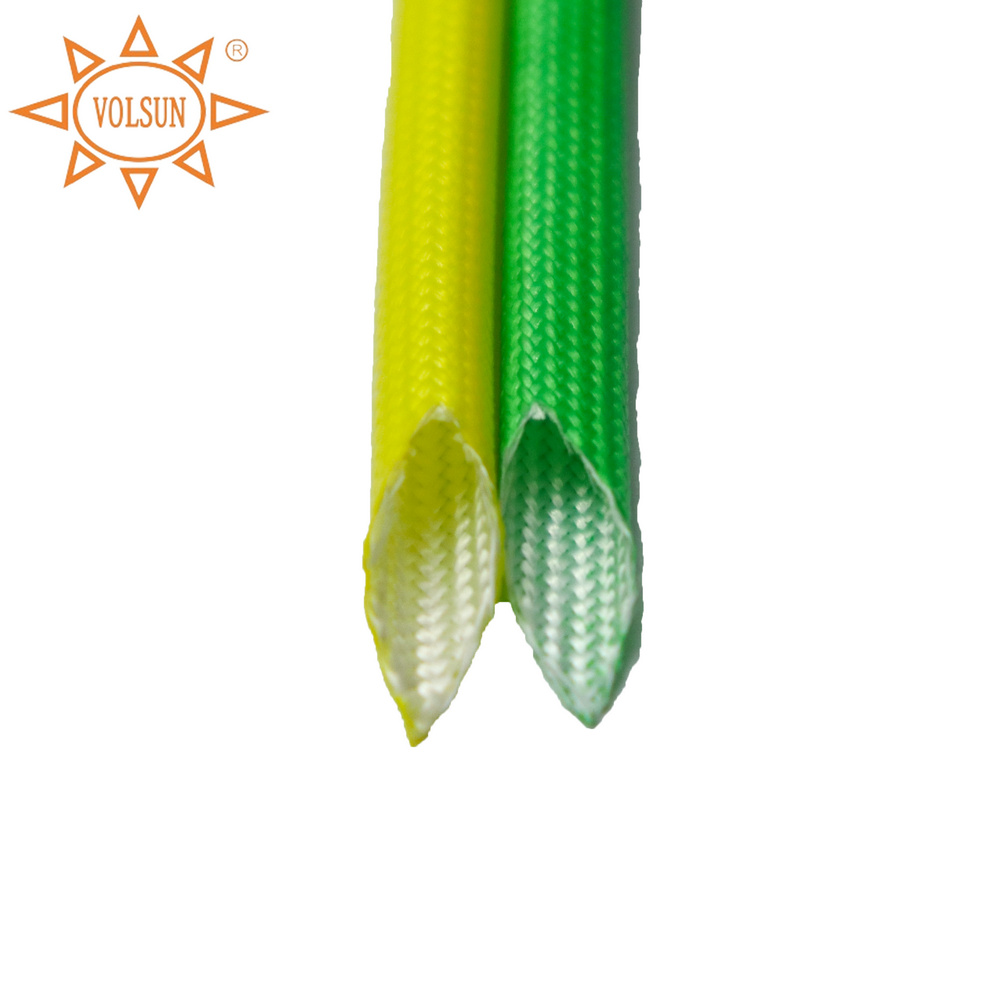

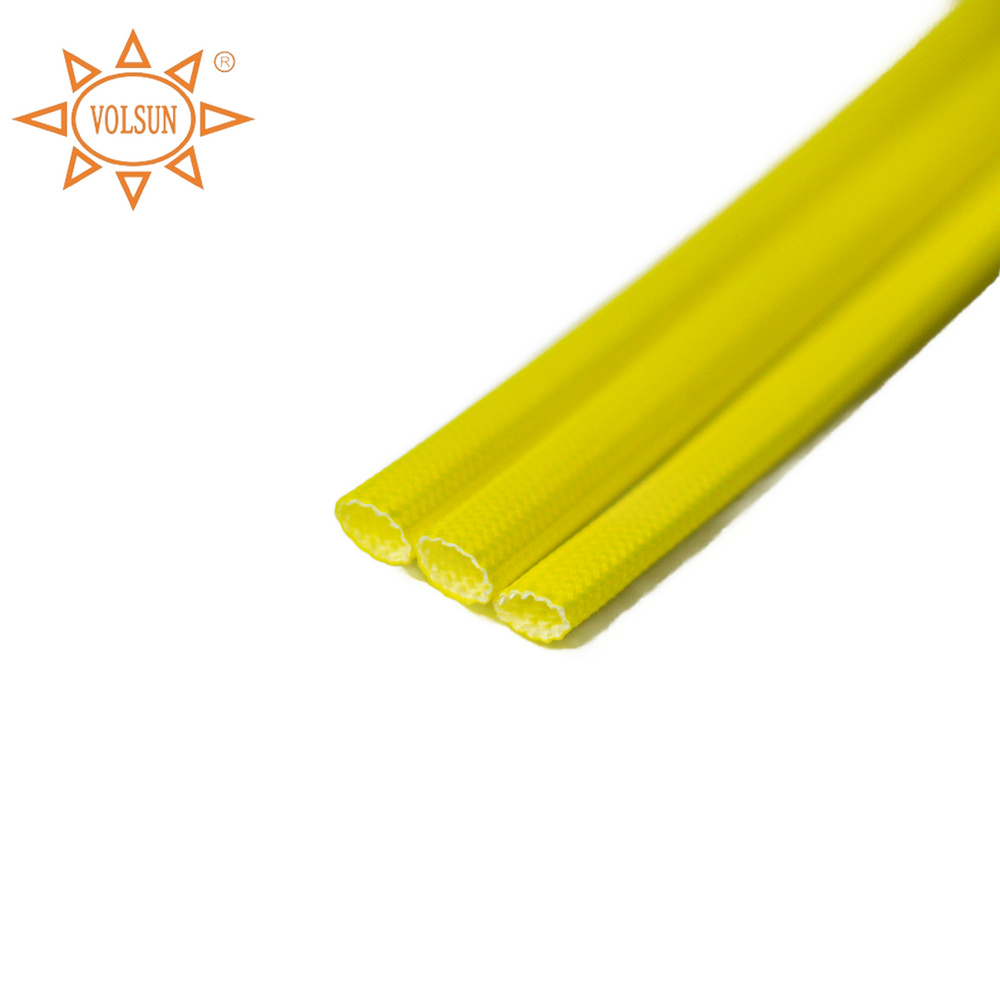

Volsun Acrylic Fiberglass Sleeve are braided with alkali-free glass fiber and coated with insulating paint tube made of modified acrylic resin by heating and drying. It has reliable heat resistance, good insulation performance, good flexibility and elasticity, and is suitable for wiring insulation and mechanical protection of motors, electrical appliances, meters, radios, household appliances and other devices.

Features

1. Operating temperature range：-30℃～155℃

2. Environmental protection standard: RoHS

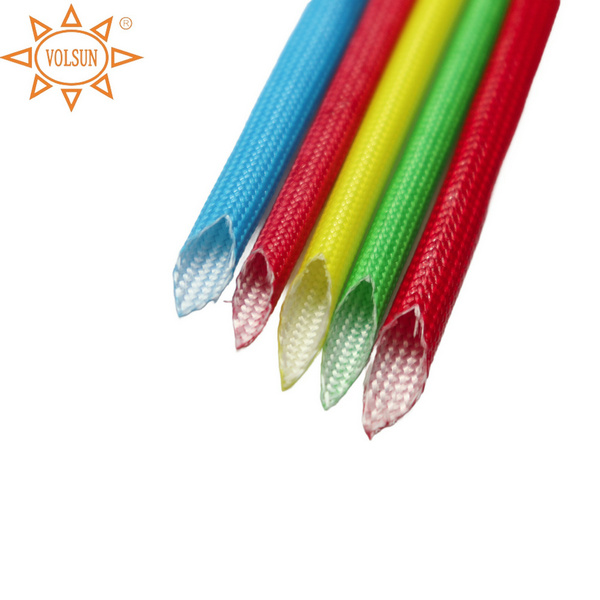

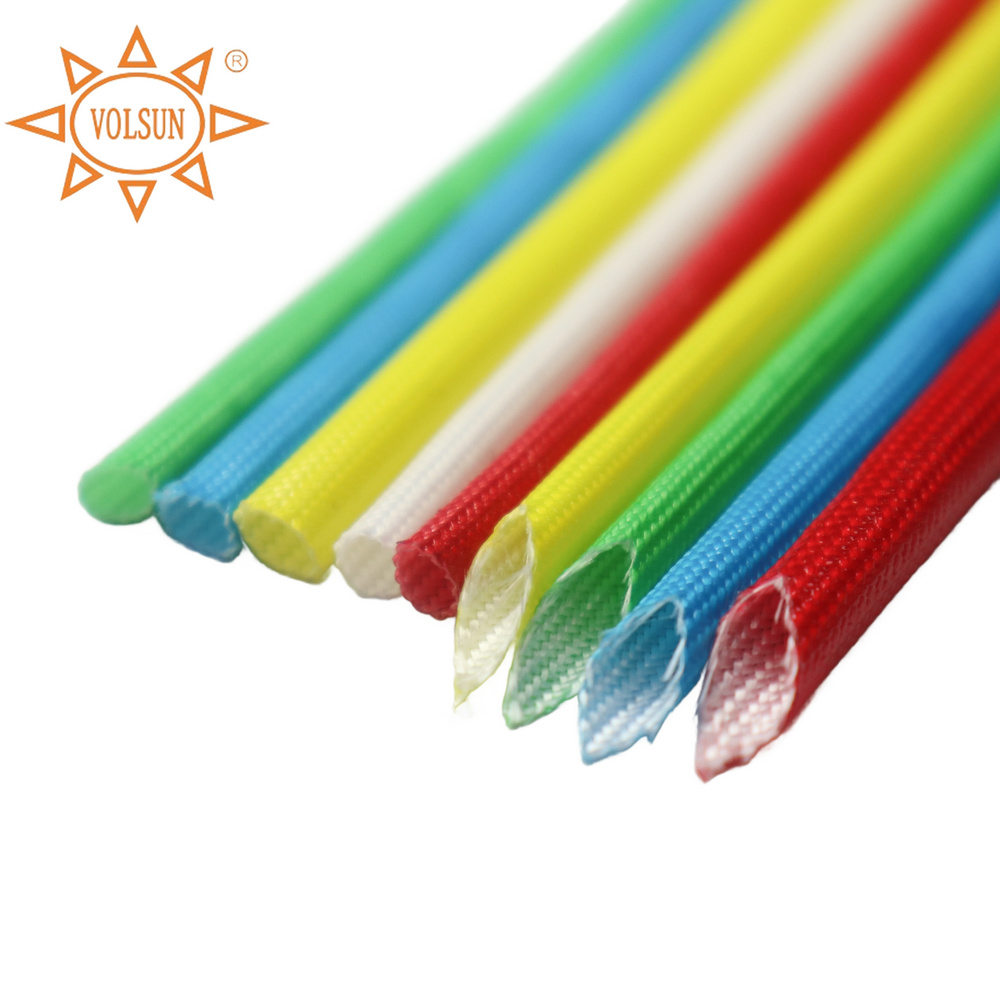

3. Standard color: White, other colors can be customized

4. Resists acids and most organic solvents




Technical Performance

Item	Typical Data	Test method
Appearance	The coating should be uniform, the surface should be smooth, and there should be no defects that affect product performance	GB/T 7113.4-2011
Insulation resistance (Ω)	≥1.0*109	GB/T 7113.2-2014
Resistance to welding heat	Pass (only for hose with nominal inner diameter ≤5mm)	GB/T 7113.2-2014
Bendability after heating	No visible cracks or peeling of the coating, allowing the color to become darker	GB/T 7113.2-2014
Bendability at low temperatures	No visible cracks or peeling of the coating (experimental temperature: ≤-15 ~ -18℃)	GB/T 7113.2-2014
Paint resistance to hydrolysis	No coating migration, no adhesion between the hose and the paper and the hose test piece, and no discoloration of the paper	GB/T 7113.2-2014
Breakdown voltage	See reference standard	GB/T 7113.2-2014

Dimensions

Size	ID d(mm)	Thickness w(mm)					Package(M/Roll)
		1.2KV	1.5KV	2.5KV	4.0KV	7KV
Φ0.8	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.5	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.5	+0.25mm	0.25±0.05mm	0.25±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ3.0	+0.35mm	0.30±0.05mm	0.30±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ3.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ4.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ4.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ5.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.70±0.15mm	100
Φ6.0-9.0mm	+0.50mm	0.45±0.05mm	0.45±0.05mm	0.60±0.15mm	0.60±0.15mm	0.70±0.15mm	100
Φ10.0-12.0mm	+0.70mm	0.50±0.05mm	0.50±0.05mm	0.65±0.15mm	0.65±0.15mm	0.80±0.15mm	50/30
Φ13.0-35.0mm	+0.80mm	0.50±0.05mm	0.50±0.05mm	0.70±0.15mm	0.70±0.15mm	0.80±0.20mm	30/20

Note: Special sizes and packages can be customized as request.
