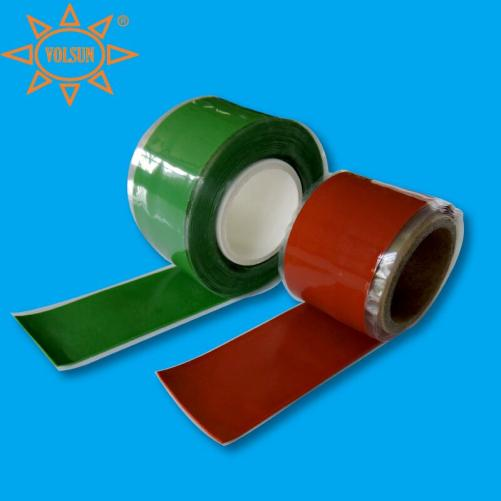

Non-flame Retardant Self-fusing Silicone Tape




















Description:

Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools. It is tear, abrasion, and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator. This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles. Direction for use note: 1. Remove any excess dirt, oil, etc. from repair area and clean hands with hand cleaners or soap and water before starting the repair. 2. Remove package and peel 1-2 inches of liner from the tape. 3. Press the exposed tape firmly to the surface to be repaired, making sure to completely overlap the first wrap over itself while at the same time stretching the tape.

Features:


·  Operating temperature: -60-180℃
·  Standard color: Red,Yellow,Blue,Green,Black,other colors are also available
·  Hardness shore: 50A

Technical Data:

Properties Typical Data Test Method

Tensile Strength

≥5.5Mpa

ASTM D 412

Elongation at break

≥300%

ASTM D 412

Dielectric Strength

≥25KV

ASTM D 149
Aurohension
13.7N/cm(typical data)

GB/T 20631.2-2006

Water absorption

0.35%

ASTM D 570

Volume Resistivity

≥1.0×10140.cm

ASTM D 876

Dimensions:


Size(mm)              Width(mm)
                                               Standard Package
  (M/Roll)
                Thickness(mm)
25*0.5   25                                                                       0.5                             5/Customized
25*0.8   25                                                                       0.8                                                 5/Customized
50*0.5   50                                                                       0.5                                                 5/Customized
50*0.7   50                                                                       0.7                                                 5/Customized
50*0.8   50                                                                       0.8                                                 5/Customized
50*1.8   50                                                                       1.8                                                 5/Customized
80*1.8   80                                                                       1.8                                                 5/Customized
100*1.8 100                                                                     1.8                                                 5/Customized

Note: Other dimensions or package can be customized as request.
