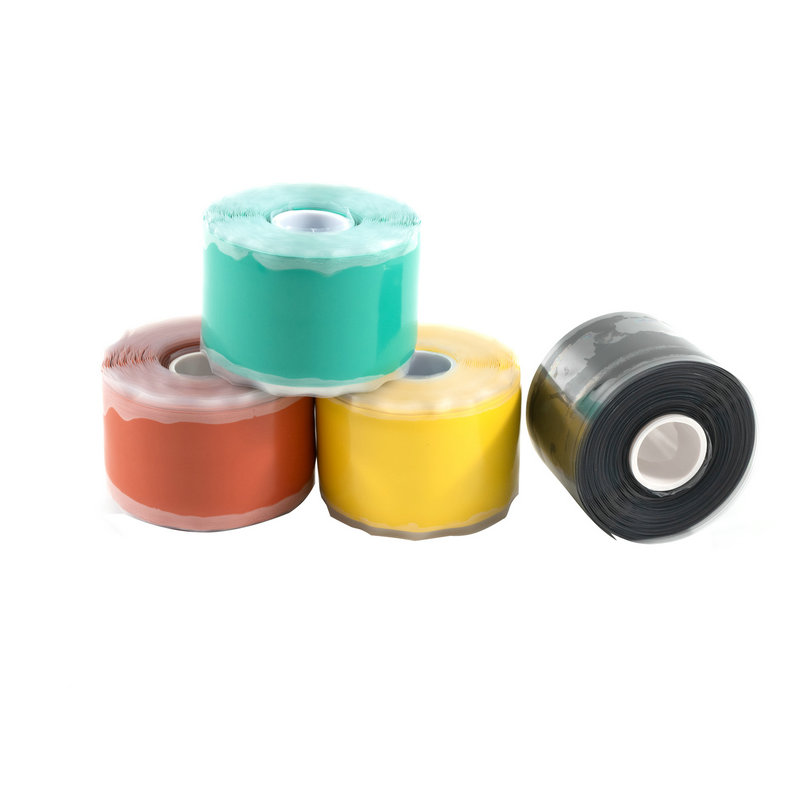

Flame Retardant Self-fusing Silicone Tape
Description:
Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools. It is tear, abrasion, and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator. This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles. Direction for use note: 1. Remove any excess dirt, oil, etc. from repair area and clean hands with hand cleaners or soap and water before starting the repair. 2. Remove package and peel 1-2 inches of liner from the tape. 3. Press the exposed tape firmly to the surface to be repaired, making sure to completely overlap the first wrap over itself while at the same time stretching the tape.
Features:
· Operating temperature: -60-180℃
· Standard color: Red,Yellow,Blue,Green
· Flame retardant grade: V0(UL94)
· Hardness shore: 53A
Technical Data:
| Properties | Typical Data | Test Method |
|
Tensile Strength |
≥3.5Mpa |
ASTM D 412 |
|
Elongation at break |
≥300% |
ASTM D 412 |
|
Dielectric Strength |
≥25KV |
ASTM D 149 |
| Aurohension |
13.7N/cm（typical data） |
GB/T 20631.2-2006 |
|
Water absorption |
0.35% |
ASTM D 570 |
|
Volume Resistivity |
≥1.0×10140.cm |
ASTM D 876 |
Dimensions:
|
Size(mm) Width(mm) |
Standard Package | |||
| (M/Roll) | ||||
| Thickness(mm) | ||||
| 25*0.5 | 25 0.5 5/Customized | |||
| 25*0.8 | 25 0.8 5/Customized | |||
| 50*0.5 | 50 0.5 5/Customized | |||
| 50*0.7 | 50 0.7 5/Customized | |||
| 50*0.8 | 50 0.8 5/Customized | |||
| 50*1.8 | 50 1.8 5/Customized | |||
| 80*1.8 | 80 1.8 5/Customized | |||
| 100*1.8 | 100 1.8 5/Customized | |||
Note: Other dimensions or package can be customized as request.
