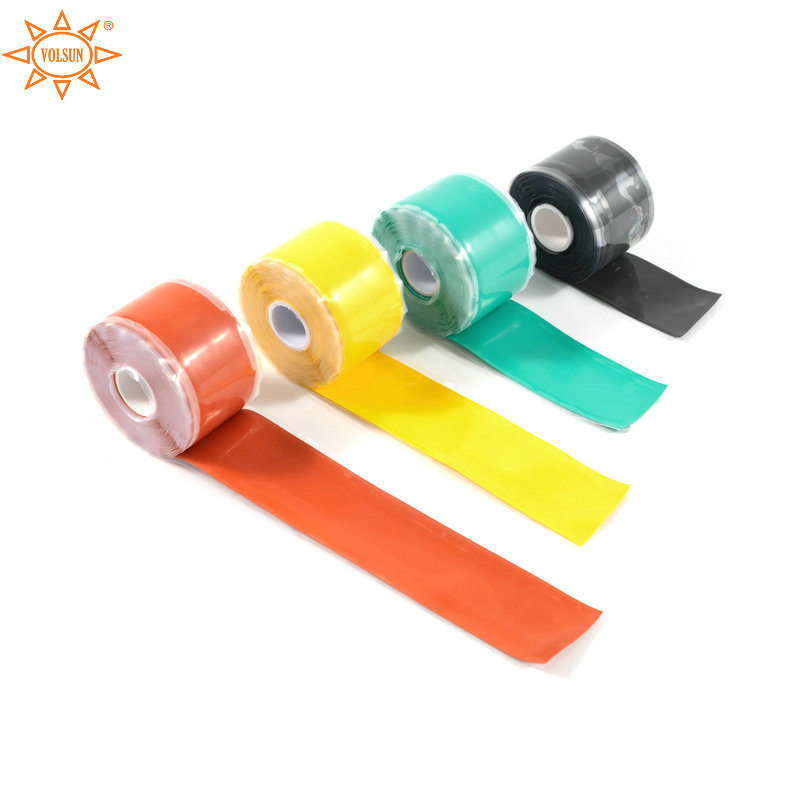

High Performance Flame Retardant Self-fusing Silicone Tape



Description

Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools. It is tear, abrasion, and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator. This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles.




Features

  • Standard colors: red, yellow, green, black (other colors can be customized)
  • Operating temperature: -60℃~+180℃
  • The surface of the tape is not sticky to the touch, after peeling off, no sticky residue will be left
  • Strong self-adhesiveness can be produced in a short time, and it can be self-integrated after winding, which can be sealed and waterproof
  • The product can be wound into any shape, suitable for wrapping various electrical cable joints and intermediate joints
  • Anti-fouling, anti-corrosion, anti-ultraviolet, waterproof, ozone-resistant, anti-aging, suitable for various environments, suitable for outdoor operations


Technical Performance


Item Typical Data Test Standard
Tensile Strength ≥3.5MPa GB/T 528-2009
Elongation at break ≥200% GB/T 528-2009
Self-adhesive >3.5N/cm ASTM D2148
Flame Retardancy V-0 UL94
Dielectric strength ≥22kV/mm GB/T1408.1-2006
Volume resistivity ≥1.3×1014Ω·m GB/T1410-2006






Dimensions


Size Width(mm) Thickness(mm) Package(M/Roll)
20*0.8 20±2.0 0.8±0.08 5/ customized
25*0.5 25±2.0 0.5±0.08 5/ customized
25*0.8 25±2.0 0.8±0.08 5/ customized
25*1.0 25*1.0 1.0±0.08 5/ customized
30*1.5 30±2.0 1.5±0.08 5/ customized
50*0.5 50±2.0 0.5±0.08 5/ customized

Note: Other dimensions or package can be customized on request.


Direction For Use


1. Remove any excess dirt, oil, etc. from repair area and clean hands with hand cleaners or soap and water before starting the repair.
2. Remove package and peel 1-2 inches of liner from the tape.
3. Press the exposed tape firmly to the surface to be repaired, making sure to completely overlap the first wrap over itself while at the same time stretching the tape.


The Application of Self Fusing Silicone Tape for Substation Project






Frequently Asked Questions


Q1. What is your terms of payment?

A: Generally speaking, 30% T/T in advance ,70% balance paid off before shipment.

​Q2. What is the terms of delivery?

A:  EXW, FOB, CFR, CIF, DDU.

​​Q3. How about your delivery time?

A:  Generally it is 3-5 days if the goods are in stock, or it is 7-10 days if the goods are not in stock, and it is mainly according to the quantity.

​Q4. Can you produce according to the samples?

A:  Yes, we can produce according to your samples or technical drawings.

​Q5. What is your sample policy?

A:  Usually, we could offer the sample for free charge but do not pay the cost of freight.

​Q6. Do you test all your goods before delivery?

A:  All products meet with the 1SO 9001 Quality System, RoHS, REACH, we also have related performance test report including flame retardant test, dielectric strength test, etc.
