 RUBNS-OLC
 Silicon Rubber Overhead Electrical Line Cover


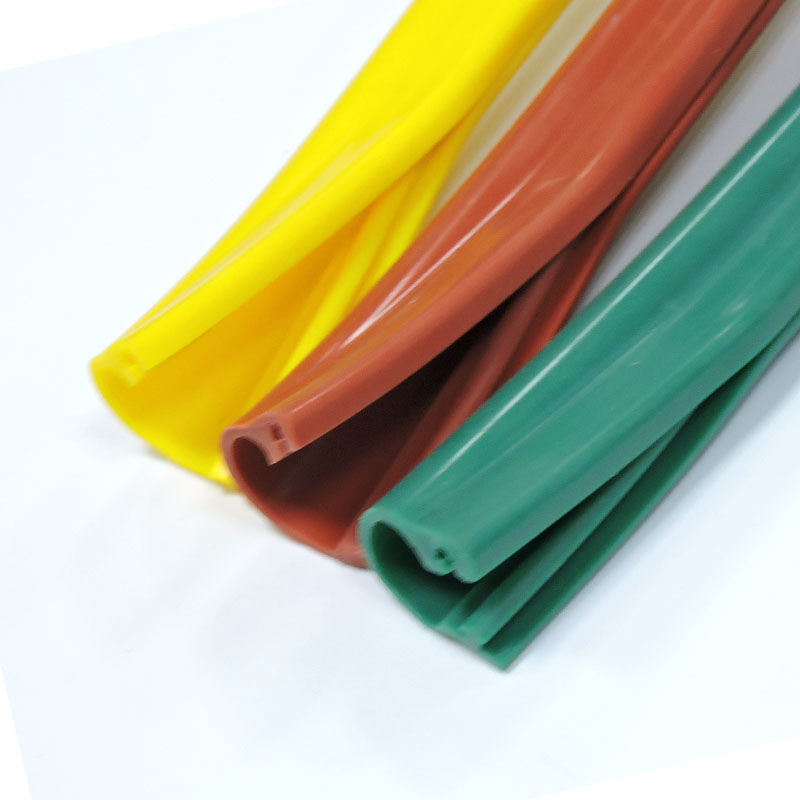

Silicon Rubber Overhead Line CoverDescription

 RUBNS-OLC  The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.
It can be used continuously under the temperature of -50℃~+150℃. It is convenient and simple to install, saves labor and time, and is used for insulation protection of cables and wires to increase the safe distance between objects and cables.


Features

1. Soft and fold-resistant
2. Long service life, anti-aging, and corrosion resistance
3. Simple installation, no fire, power outage construction time is short



Technical Performance



Item Typical Data Test Method
Electrical Strength Test ≥20kV/mm GB/T 1408.1-2006
Volume Resistivity ≥1×1014Ω·cm GB/T 1410-2006
Dielectric Constant 2~3 GB/T 1409-2006
Shore Hardness 70±5A GB/T 531
Mechanical Property
Before heat ageing
Tensile Strength ≥4.0MPa GB/T 528-2009
Elongation at break ≥200% GB/T 528-2009
After Heat aging (180℃, 7d)
Tensile Strength Change ±30% GB/T 528-2009
Elongation Change ±30% GB/T 528-2009
Low Temperature Elongation(-15℃, 2h) ≥20% GB/T 2951.4-1997
Low Temperature Flexibility(-50℃, 4h) No cracks UL224-2004
High Temperature Crack Resistance(155℃, 2h) No cracks GB/T2951.6-1997




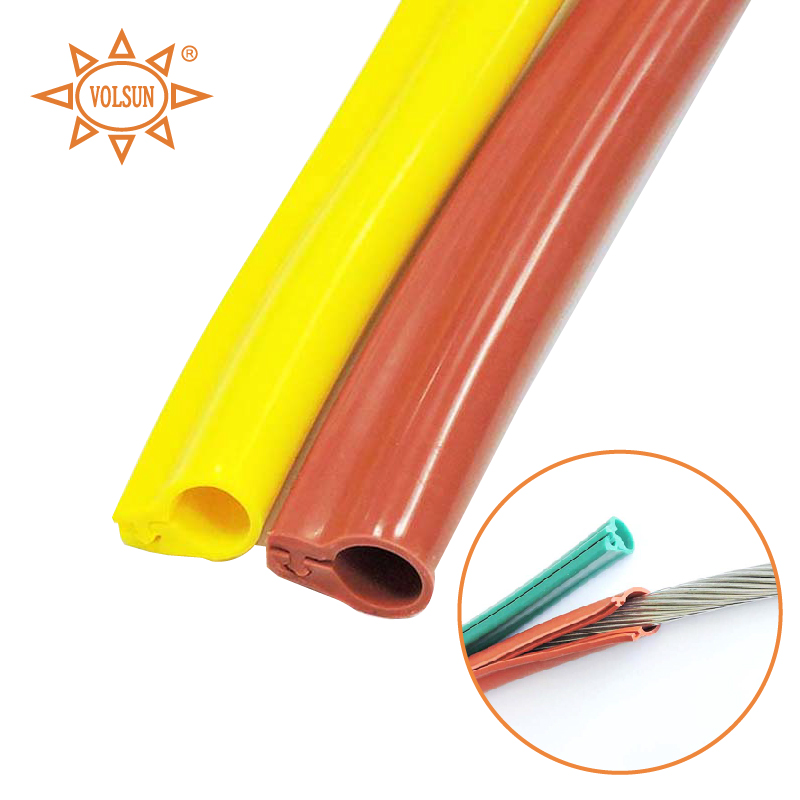

 Structure

Silicon Rubber Overhead Line Cover


Dimensions



Recommended Size for LG Type Aluminum Stranded Wires



Nominal cross-sectional area (mm²) Recommended Inner Diameter of Conductor Cover (mm)
50~70 Ф12
95~120 Ф17
150~185 Ф20
210~300 Ф24.2
400 Ф30
500 Ф32
630 Ф35
800 Ф39.8




Recommended size for LGJ Type Steel Core Aluminum Stranded Wires & LGJF Type Anti-corrosion Steel Core Aluminum Stranded Wires



Nominal cross-sectional area (mm²) Recommended Inner Diameter of Conductor Cover (mm)
35
50
Ф12
Ф15.6
70~95
120~150
185~240
Ф17
Ф20
Ф24.2
400~500
800~800
Ф32
Ф39.8





Correspondence table between Voltage and Wall Thickness



Voltage(KV) ≤10kV ≤35kV ≤110kV ≤220kV
Wall thickness 2.0±0.3mm 3.0±0.4mm 4.0±0.5mm 6.0±1.0mm

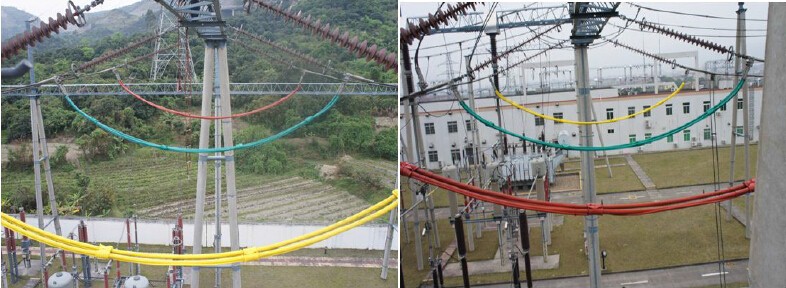

Application Cases







Installation Instructions


  • Clean the inside of the RUBNS-OLC with cleaning cloth and alcohol fluids until the inside is

clean without dust;

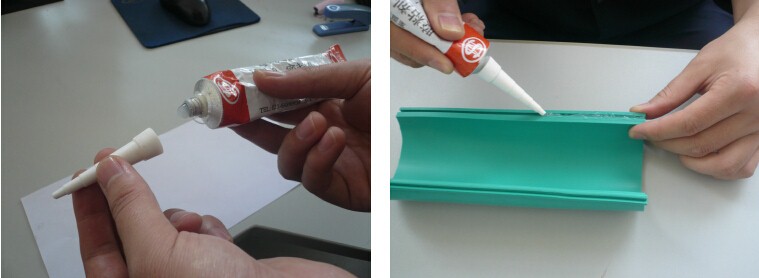

  • Connect the pointed plastic mouth to the body of RTV silicone rubber adhesive bottle. See illustration 1 above.


  • Smear RTV silicone rubber adhesive all over the concave channel of the RUBNS-OLC
uniformly as showed in illustration 2 above;

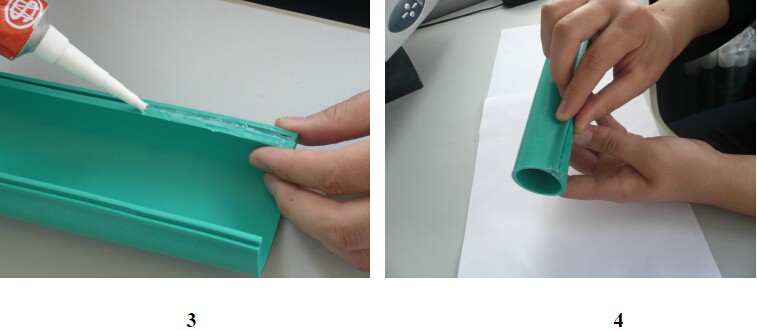

  • Uniformly smear the two flat fringes of the concave channel with RTV silicone
rubber adhesive as the illustration 3 shows.



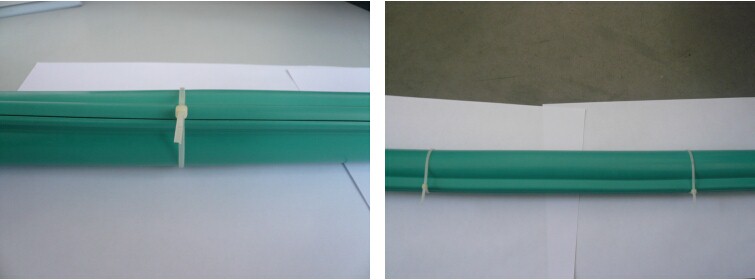

  • Connect the bulging part of the RUBNS-OLC on one side into the concave channel of the
other side and squeeze the connecting part from one end to the other as illustration 4 indicates;
