MSVLO MSVLO(C)
Military Grade, Fluid Resistant at High Temperature, Heat Shrinkable Identification Sleeves
【Description】MSVLO series is military grade cable and wire identification sleeves, which is designed to meet the requirements of outstanding oil resistance. It is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high end markets where highly reliable cable& wire identification is required. MSVLO conforms to Classes 1 and 3 of AMS-DTL-23053/6, half-hard high molecular materials. Shrink ratios, both 2:1 and 3:1 are available. See below tables. MSVLO boasts amazingly high fluid resistance at high temperature for long time like JP-8 used for aviation fuel oil. It is widely used in aviation and spaceships, high speed rails EMU, submarine as well as other military and architecture industries.
【Features】
- Fluid resistance at 70°C/158°F for 168h, such as JP-8 fuel oil, temperature rating 135°C /275°F
- High temperature resistant, rated temperature, 135°C
- Highly flame retardant, VW-1
- ROHS compliant
- High reliability, permanent identification
- Heat sensitive, swift recovery
- Computer-printable, any characters and logo are easy to design
【Rated Temperature】
- Continuous operating temperature: -55°C~135°C/-67°F~275°F
- Min. shrink temperature: 85°C/185°F
- Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes
- Max. storage and transportation temperature: ≤+50°C/122°F
【Standards】
- Meets AMS-DTL-23053/5, compatibility: UL224
- Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
【Structure】
【Dimensions】

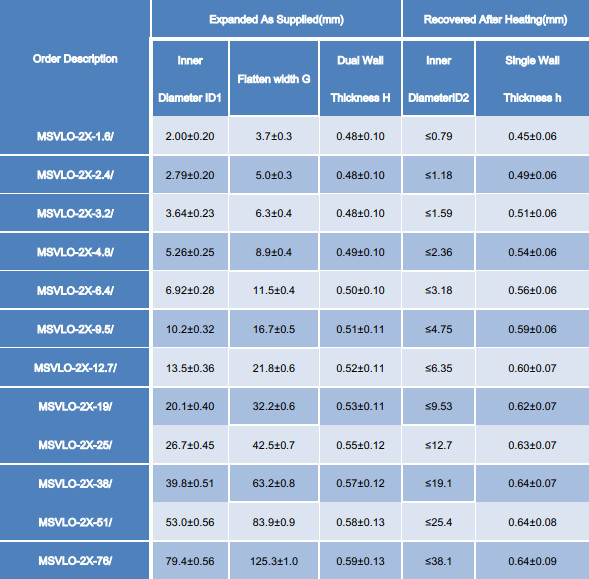

Shrink Ratio 2:1

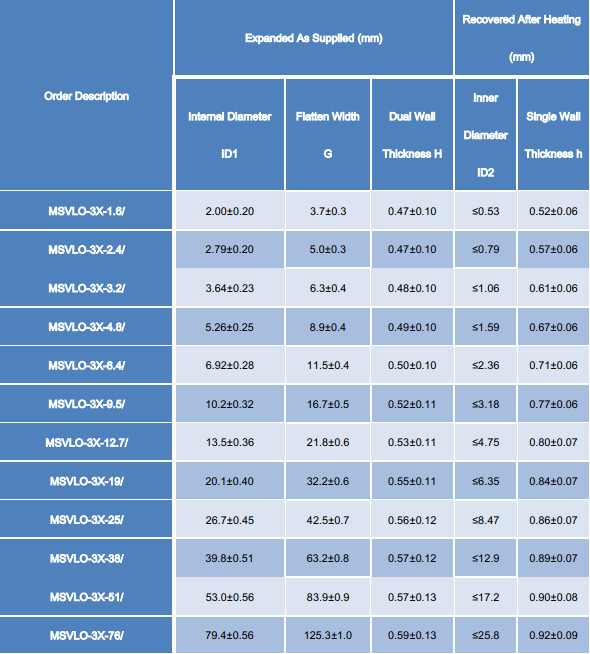

Shrink Ratio 3:1
【Standard Package Data】
【Technical Performance】
