MSVLU MSVLU(C)
Halogen Free Environmentally Friendly Heat Shrinkable Wire Identification Sleeves
【Description】MSVLU series is halogen free, environmentally friendly, heat shrinkable identification sleeves. It is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high end markets where highly reliable, economical and environmentally friendly cable& wire identification is required. It accords to the requirements of UL224, CAN/CSA C22.2. Shrink ratios, both 2:1 and 3:1 are available. See the below tables.
【Features】
- Halogen free, ideally used for electronic or electrical circuits, communications, architectural industries
- Temp. Resistance: 125°C
- Highly flame retardant, VW-1
- ROHS compliant and meet SONY SS-00259
- High reliability, permanent identification
- Heat sensitive, shrinking quickly
- Computerized lettering or fonts at your disposal.
- Standard Color: yellow, white
【Rated Temperature】
- Continuous operating temperature: -55°C~125°C/-67°F~257°F
- Min. shrink temperature: 85°C/185°F
- Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes
- Max. storage and transportation temperature: ≤+50°C/122°F
【Standards】
- Meets AMS-DTL-23053/5, compatibility: UL224
- Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
【Structure】
【Dimensions】

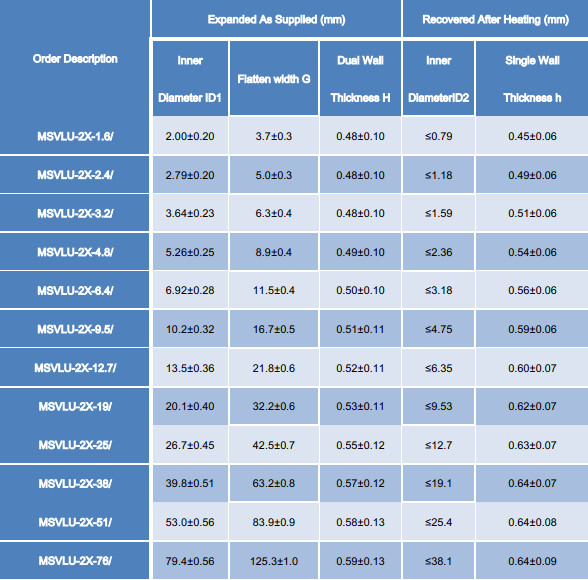

Shrink Ratio 2:1

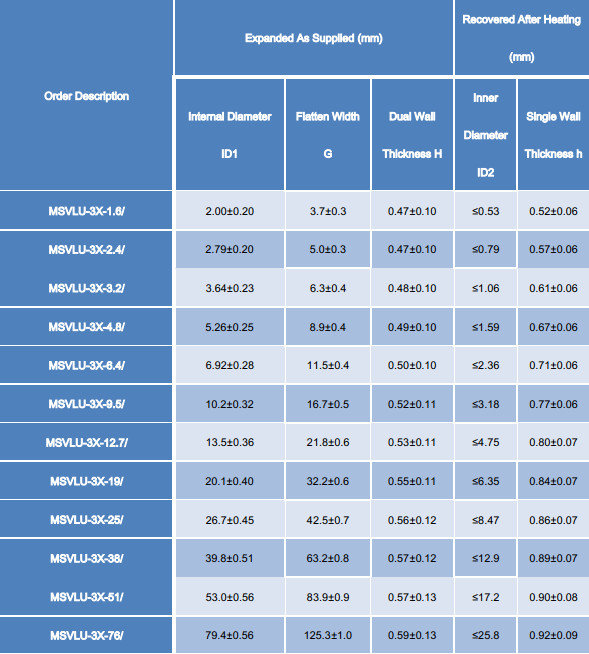

Shrink Ratio 3:1
【Standard Package Data】
【Technical Performance】
