MTVLN
Halogen Free, Low Smoke, Highly Flame Retardant, Cable Identification Tags
【Description】MTVLN(HNF) halogen free, low smoke, highly flame retardant marker tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Marker tags are non-adhesive that can be used to identify EMU for high-speed rails, subways, motor train units, submarines and aerospace. Market tags are attached on large cables and wire bundles with cable ties and keep permanent identification.
【Features】
- Halogen free low smoke emitting materials, ideal for identifying motor train unit, rail transit, aerospace and naval vessels
- Not necessary to disconnect the electrical return circuit when installing the identification maker labels
- Using the binding wire, easy to handle
- Temperature resistance, rated temperature 125°C
- Highly flame retardant, low toxicity index, meets international locomotive standards
- RoHS compliant, meets SONY SS-00259
- Permanent identification, not melting in high temp., not turning fragile in low temp., resistant to scrape, rub, abrasion
- Computer-printable, any character and logo are easy to design.
【Rated Temperature】
- Continuous operating temperature: -55°C~135°C/-67°F~275°F
- Max. storage and transportation temp.: ≤50°C /122°F
【Standards】
- Material standards: ASTM D 2671/DIN5510-2
- British/French smoke toxicity standards: BS 6853/NF F 16-101
- Color code soundness: SAE-AS 81531 and MIL-STD-202G/215K

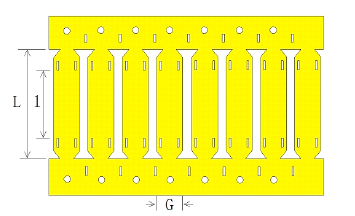

【Structure】

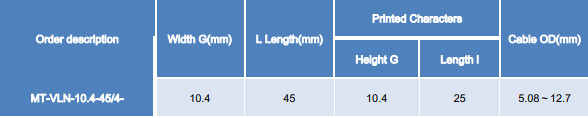

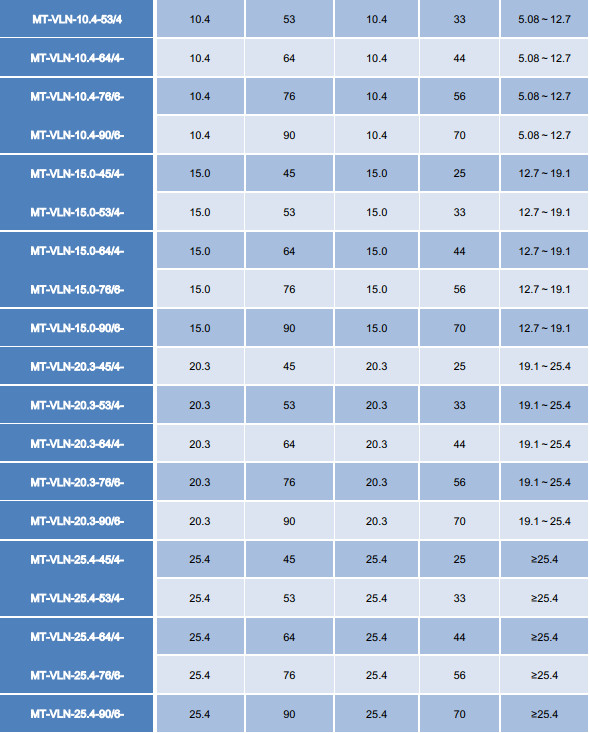

【Dimensions】
【Technical Performance】
